Endurant XD, Endurant HD
TRIG2630 EN-US
|
April 2025 - B

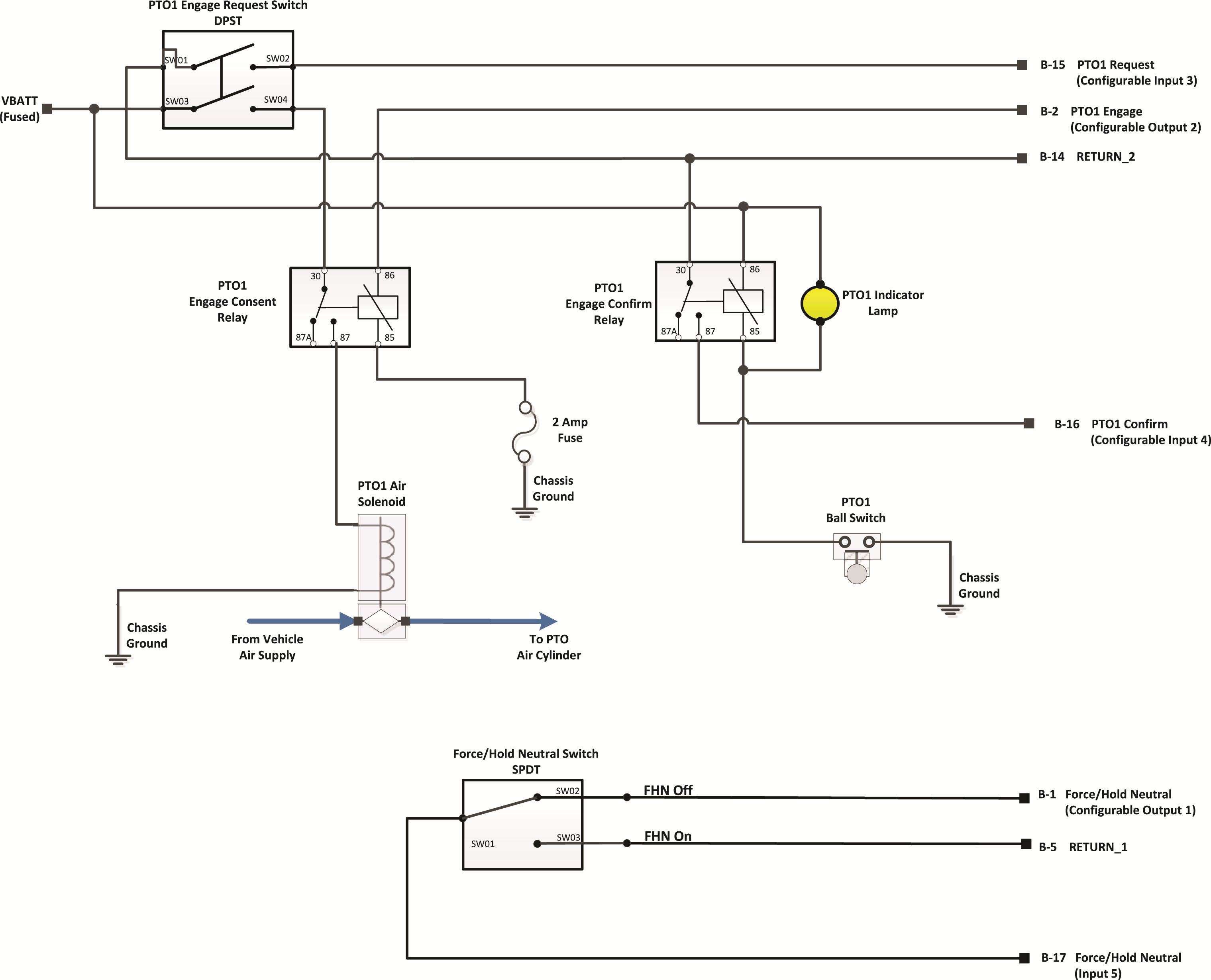

Input / Output Calibration Package 22 and 25

#22 PTO 1 + Force Neutral

#25 PTO 1 + Hold Neutral

Images/_LineArt/TRIG2630_Pkg 22&25_PTO1ForceHoldNeutral.png

Note: Refer to I/O Package #14 and #15 for FHN Multiple Switch Schematic.
