Endurant XD, Endurant HD
TRIG2630 EN-US
|
October 2024 - A

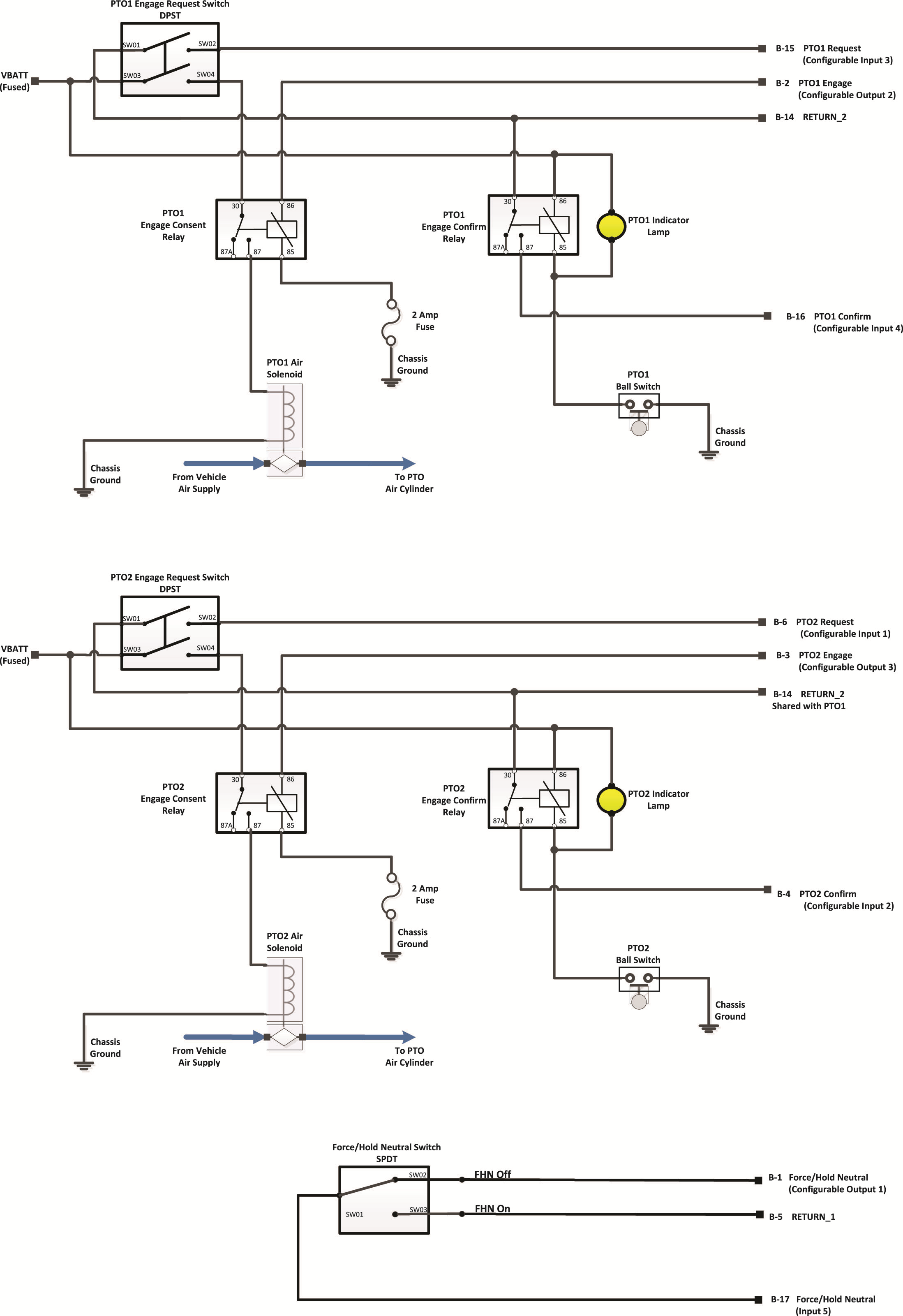

Input / Output Calibration Package 23 and 26

#23 PTO 1 + PTO 2 + Force Neutral

#26 PTO 1 + PTO 2 + Hold Neutral

Images/_LineArt/Package23-26.png

Note: Refer to I/O Package #14 and #15 for FHN Multiple Switch Schematic.
