Transmission Control Module (TCM) Kits
| Description | PN | QTY |
|---|
| 1 | TCM (NSS) | Varies | 1 |
| 2 | TCM Seal | 10001587 | 1 |
Transmission Control Module (TCM) Kit Part Number Identification
1. Record TCM Part Number.

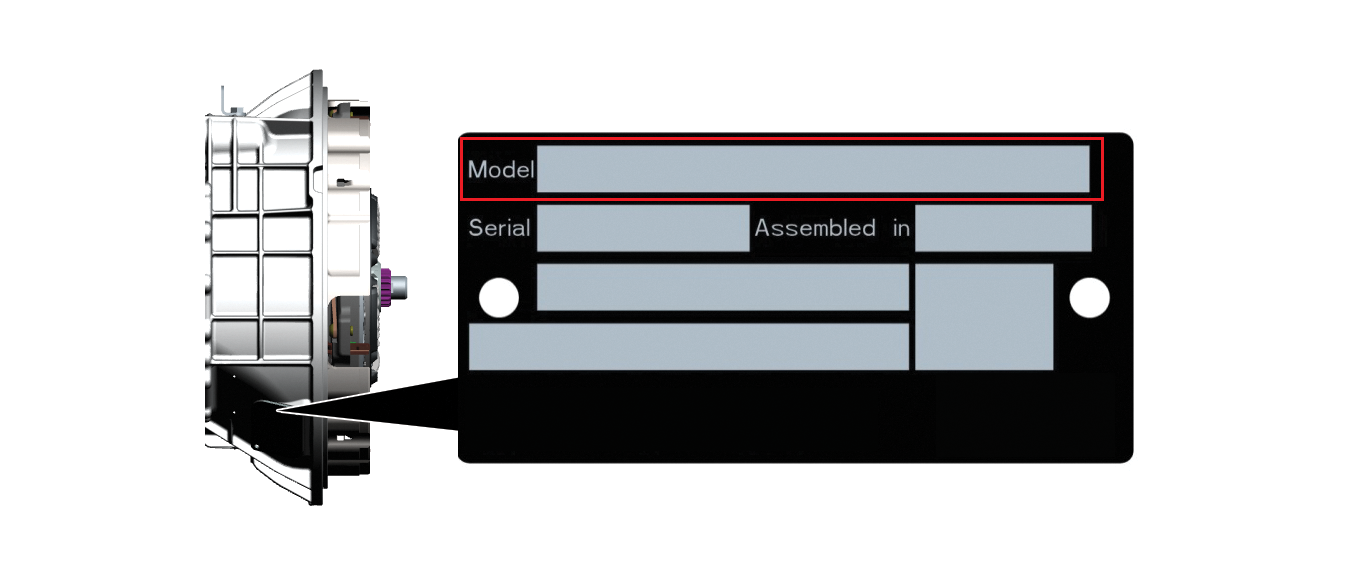

2. Record Transmission Model Number.
3. Compare recorded TCM Part Number and Transmission Model Number in table to determine TCM Kit part number.
TCM Part Number:

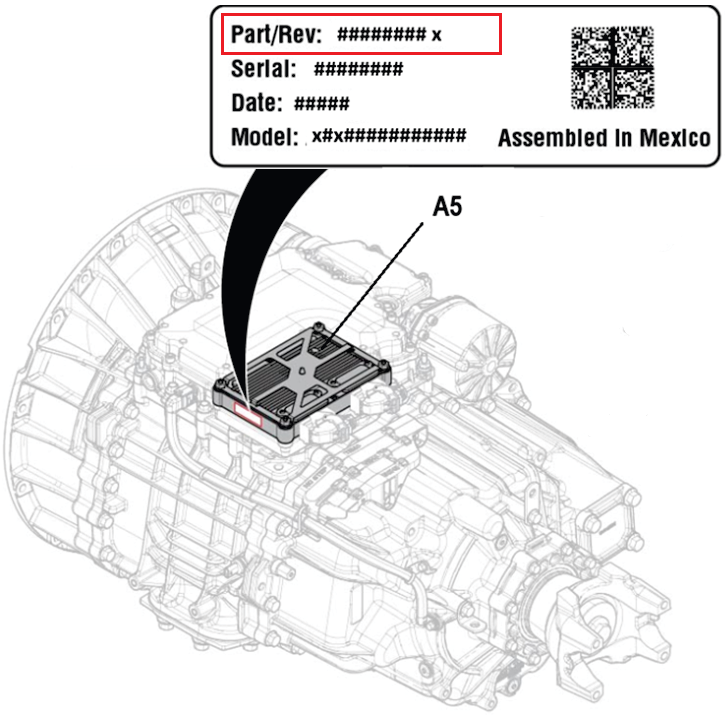

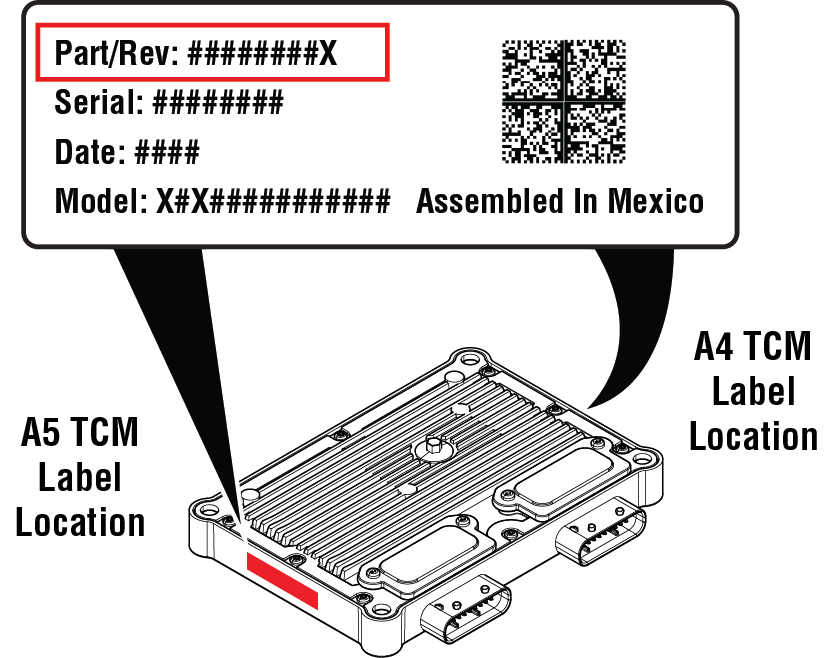

Use TCM part label or ServiceRanger.
Endurant HD Transmission Model Number
- Key on with engine off.

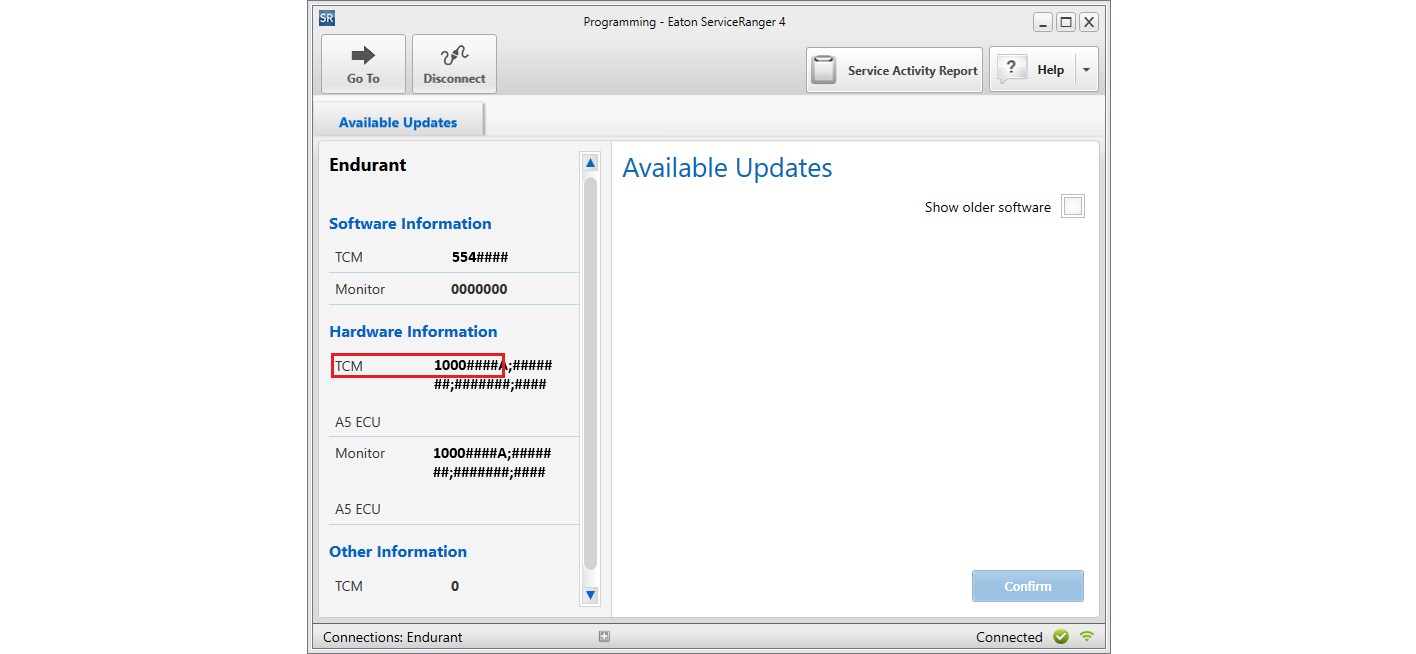

- Connect ServiceRanger.
- Go To Programming.
- Under Hardware Information, record TCM part number.
| Recorded Part Number Information |
|---|
| TCM Part Number | |
| Transmission Model Number | |
TCM Kit Part Number Table
| TCM Part Number | Transmission Model | TCM Kit PN | TCM Kit PN at PACCAR |
|---|
| 10001705 (A4) and 10003852 (A5.1) | EEO-xxF112C | K-4616 | K-4616-PAC |
| EE-xxF111B | K-4617 | K-4617-PAC |
| EHD-xxF112C-N | K-4618 | K-4618-PAC |
| EHD-xxF112C-V | K-4664 | K-4664-PAC |
| PO-xxF112C | K-4619-PAC |
| PHDP-xxF112C | K-4665-PAC |
| 10004623 (A5.2) | EHD-xxF112C-N | K-4715 | K-4715-PAC |
Note: Refer to New Replacement Transmission Control Module (TCM) Service Procedure in the Endurant HD Service Manual TRSM-0950 for original TCM removal and new replacement TCM installation.

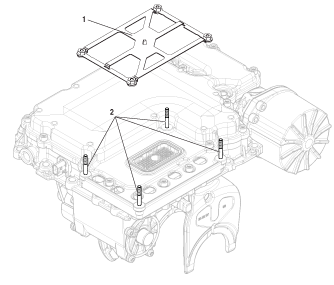

TCM Cover and Mounting Stud
| Description | P/N | QTY |
|---|
| 1 | TCM Cover | 4307675 | 1 |
| 2 | TCM Mounting Stud (M6x50.0) | 5577511-MP4 | 4 |
Fluid Pressure Sensor Kit
K-4387
| Description | P/N | QTY |
|---|
| 1 | Fluid Pressure Sensor | 10004110 | 1 |
Plug, Fluid Pressure Sensor
| Description | P/N | QTY |
|---|
| 1 | Plug, Fluid Press Sensor (M14X1.5) | 10004396 | 1 |
Sealant
| Description | P/N | QTY |
|---|

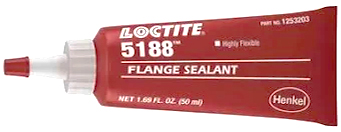

| Anaerobic Sealant (50 ML / 1.69 Oz.) | 5564561 | 1 |

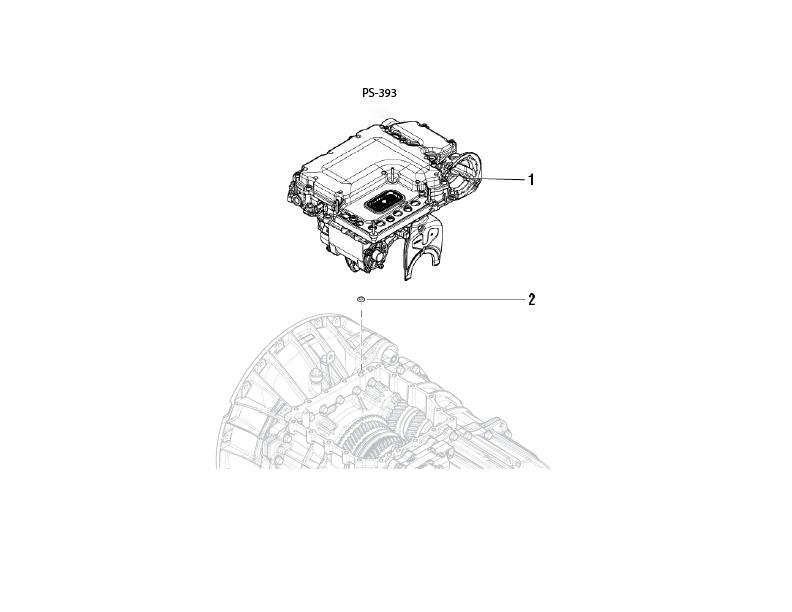

Mechatronic Transmission Module (MTM) Kits
| Description | P/N | QTY |
|---|
| 1 | MTM (NSS) | Varies | 1 |

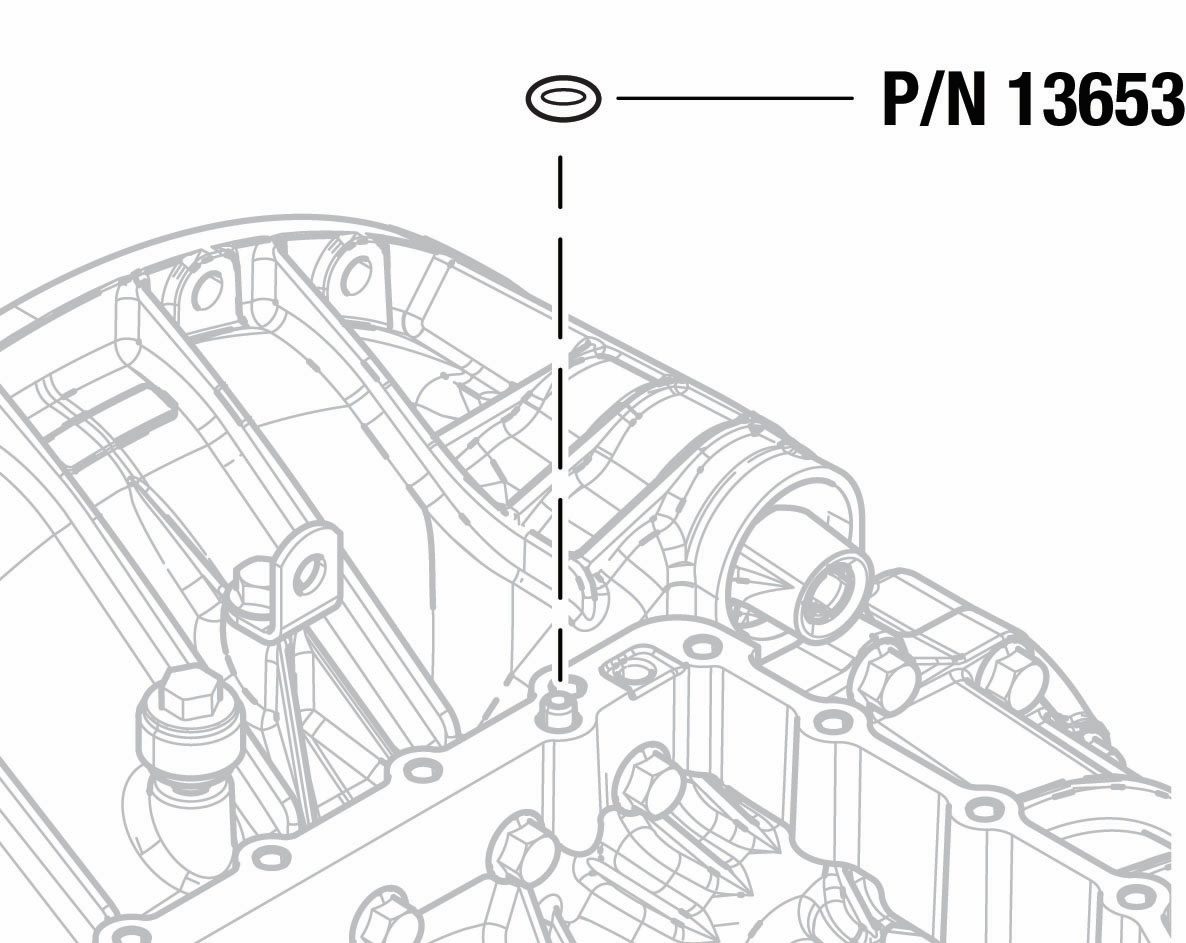

| 2 | I-Brake MTM to Main Housing O-Ring | 13653 | 1 |

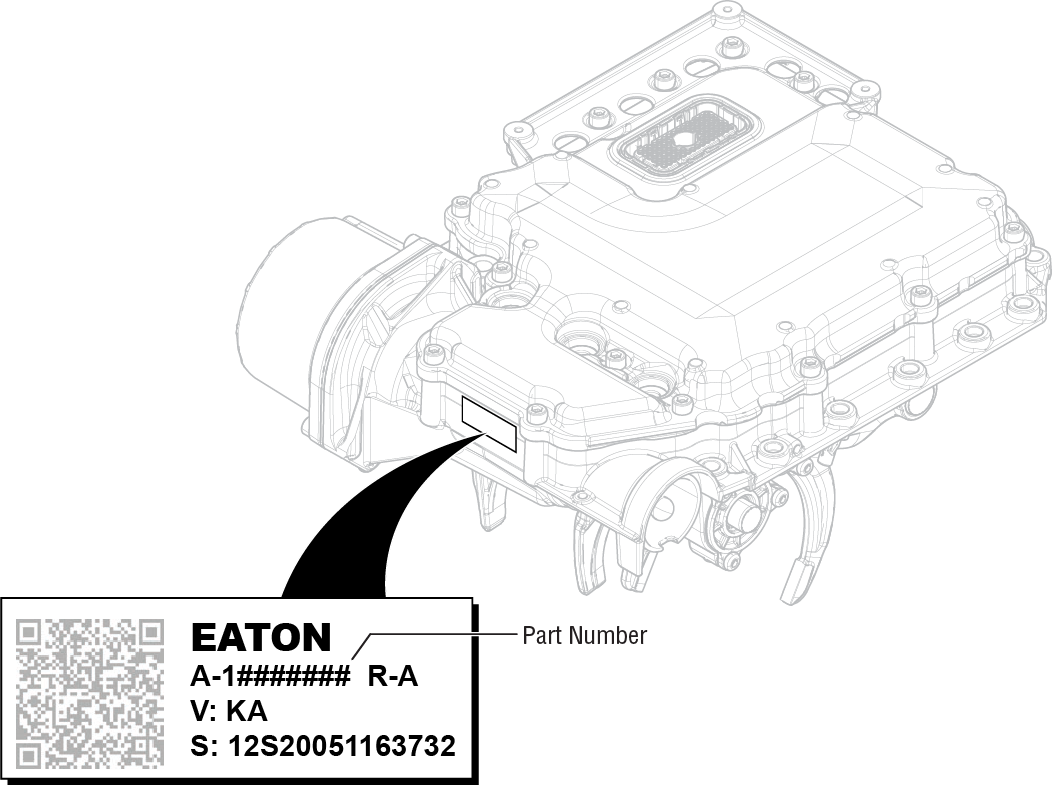

Mechatronic Transmission Module (MTM) Kit Part Number Identification
MTM Kits
Record Transmission Model and compare in table to determine MTM Kit part number.
| MTM Part Number | Transmission Model | MTM Kit PN | MTM Kit PN at PACCAR |
|---|
| A-10000715R A-10004231R | EEO-xxF112C | K-4355W* | K4355W-PAC* |
| EE-xxF111B |
| EHD-xxF112C-N |
| A-10004231 | EHD-xxF112C-V | K-4497R | K-4497R-PAC |
| A-10002594R A-10004383R | PO-xxF112C | K-4356W-PAC* |
| A-10004383 | PHDP-xxF112C | K4701R-PAC |
*MTM Kits do not include a Linear Clutch Actuator (LCA) - Remove and install original equipment LCA onto replacement MTM.
After MTM installation, go to Endurant HD Service Manual TRSM0950 and Configure MTM Type - PS-393.
Note: If original equipment LCA is a Low Pre-Load type, it is highly recommended to install a High Pre-Load type LCA (customer pay) - Identified by a raised casting at the 5 o’clock position: PN K-4357 (R).
 |  |
1. Low Pre-Load LCA | 2. High Pre-Load LCA |

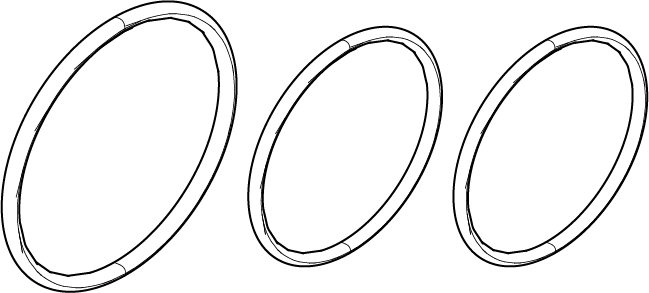

MTM O-ring Kit (Rail B, C, D Cylinders)
K-4637
Note: Reference TAIB-0994 for warranty information and use criteria.
| Description | P/N | QTY |
|---|
| 1 | Thread Adhesive | 71232 | 1 |
| 2 | MTM O-rings (NSS) | K-4636 | 1 |
| 3 | Anaerobic Sealant | 5564561 | 1 |

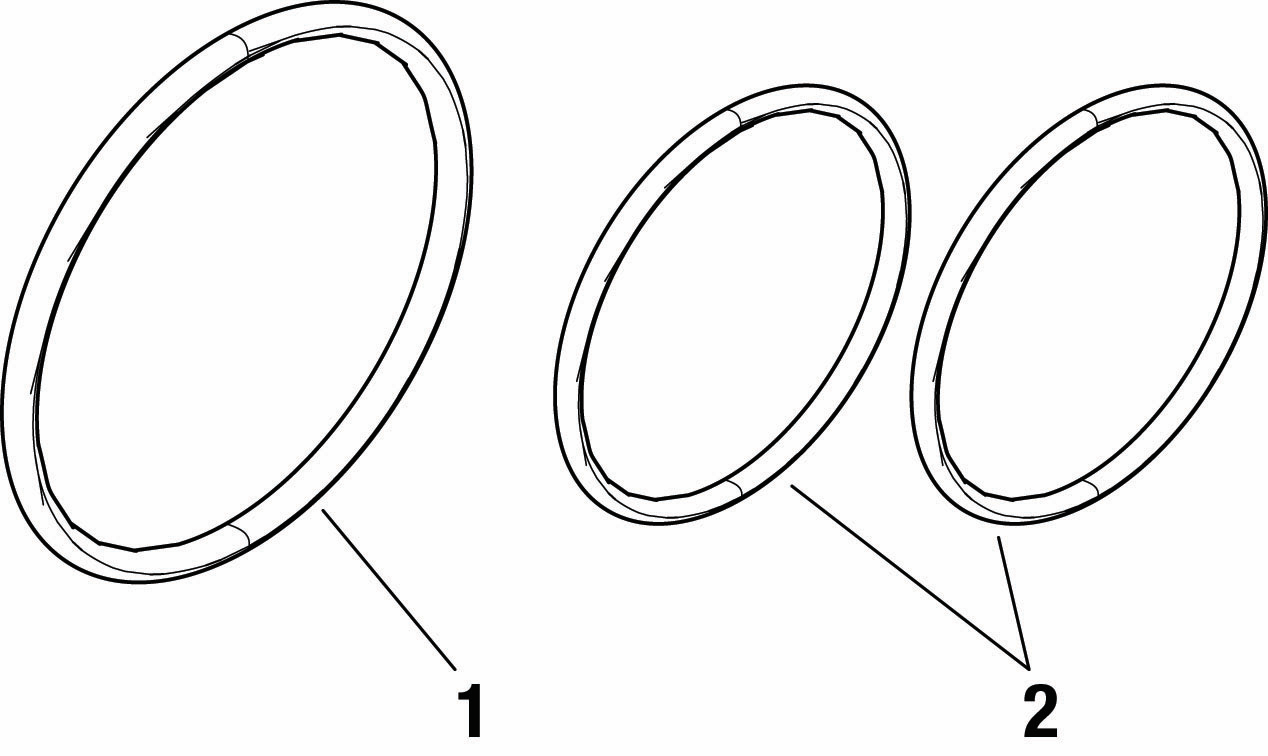

K-4636 (NSS)
| Description | P/N | QTY |
|---|
| 1 | Rail B Cylinder O-ring 64mm (2.5 in) | | 1 |
| 1 | Rail C/D Cylinder O-ring 47mm (1.85 in) | | 2 |

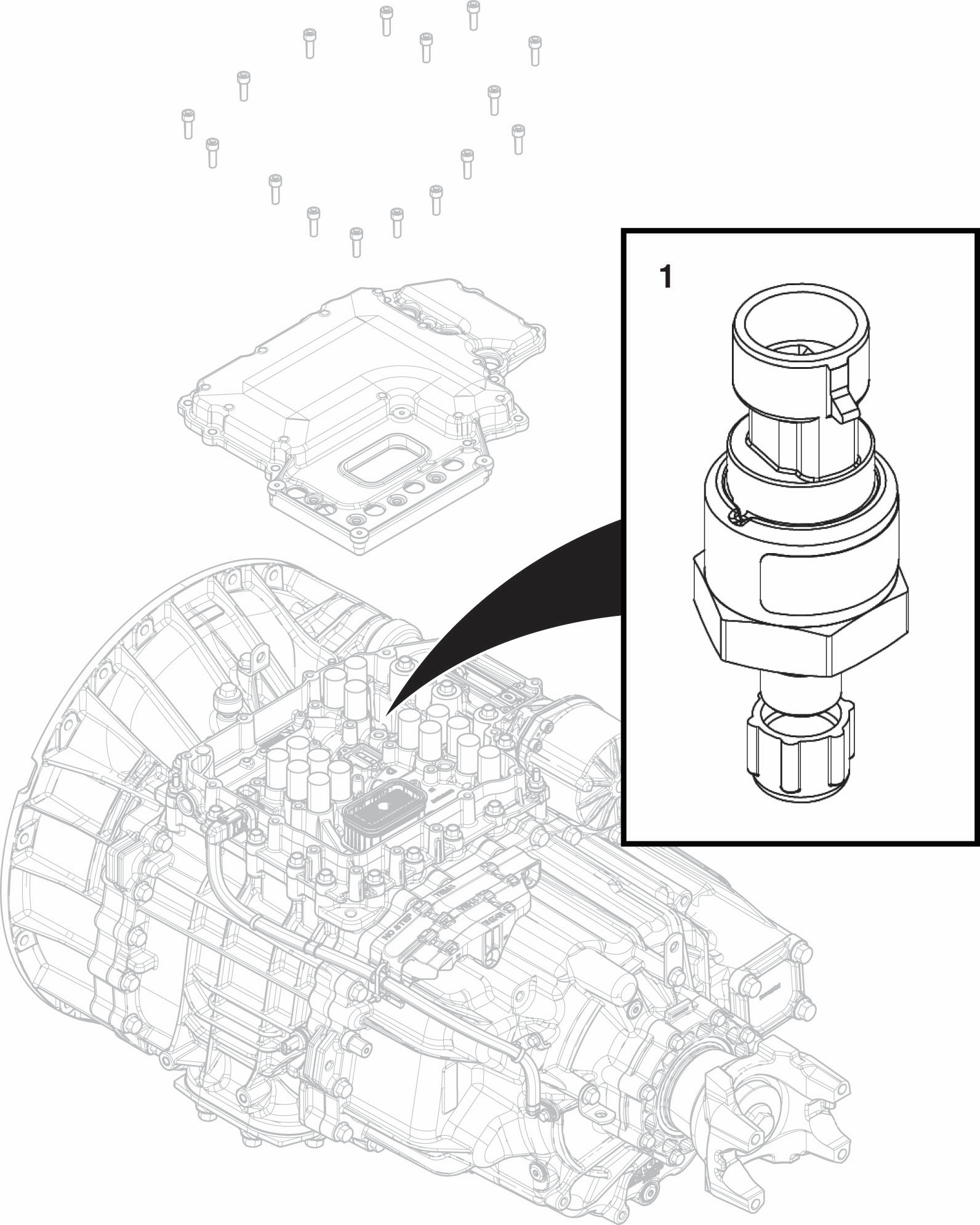

MTM Air Pressure Sensor
| Description | P/N | QTY |
|---|
| 1 | Air Pressure Sensor | 10005053 | 1 |
Note: Do not replace the air pressure sensor on a PS-393 MTM, or air pressure faults will set. Reference TAIB-1015 for detailed air pressure repair procedures.

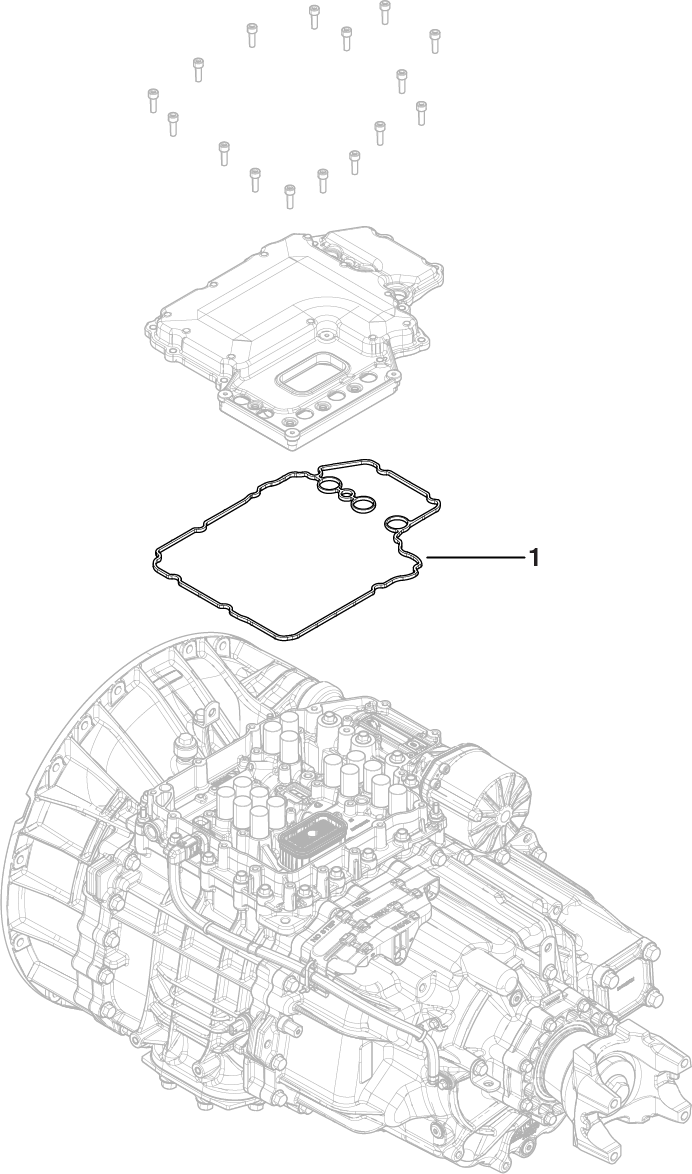

MTM Top Cover Seal
| Description | P/N | QTY |
|---|
| 1 | MTM Top Cover Seal | 10005055 | 1 |

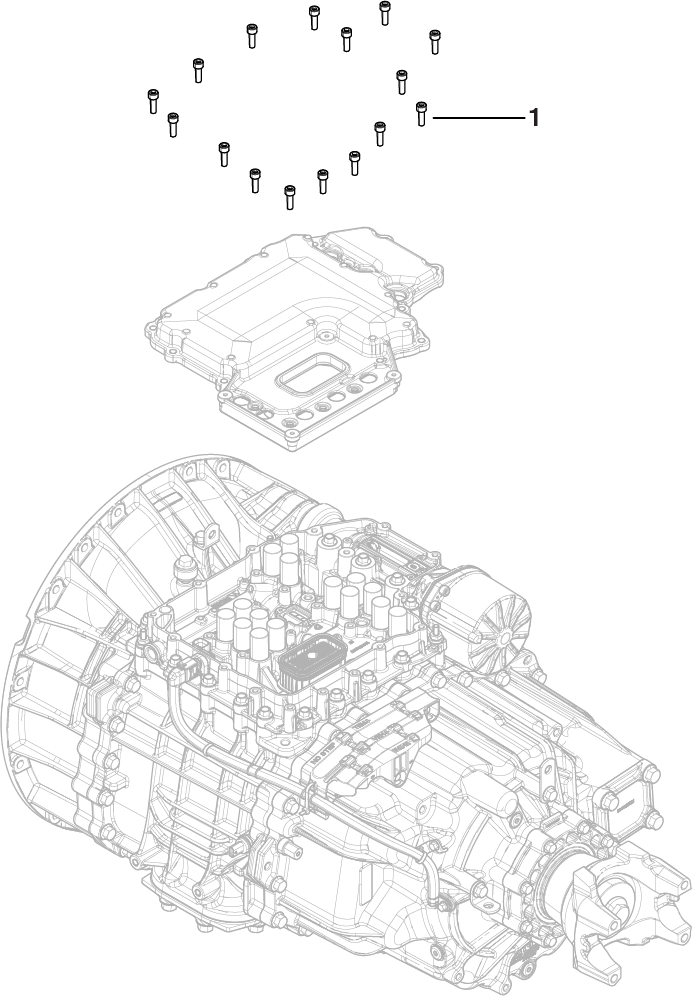

MTM Top Cover Cap Screws
| Description | P/N | QTY |
|---|
| 1 | MTM Top Cover Cap Screws (M8 x 1.25 x 25) | 10005056-MP4 | 4 |

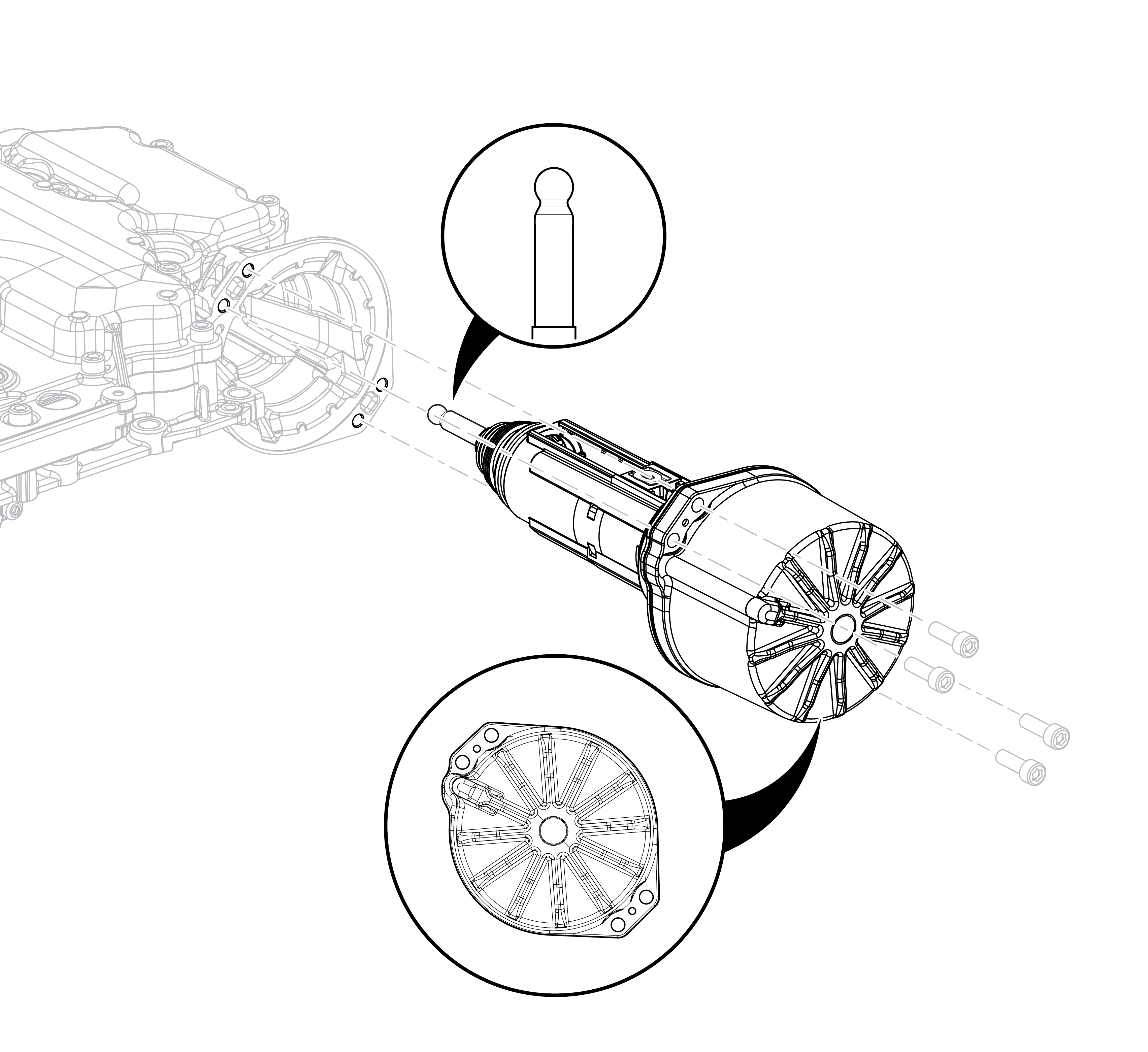

Linear Clutch Actuator (LCA) Kit
K-4357R
| Description | P/N | QTY |
|---|
| 1 | LCA | A-10004457 A-10004457R | 1 |
Note: A-10004457 replaced A-10000714 and is required for transmission serial number Z0246939 and above.
Note: K-4357R replaces K-4357 (previously A-10000714 or A-10004457) effective as of 03/27/2024.

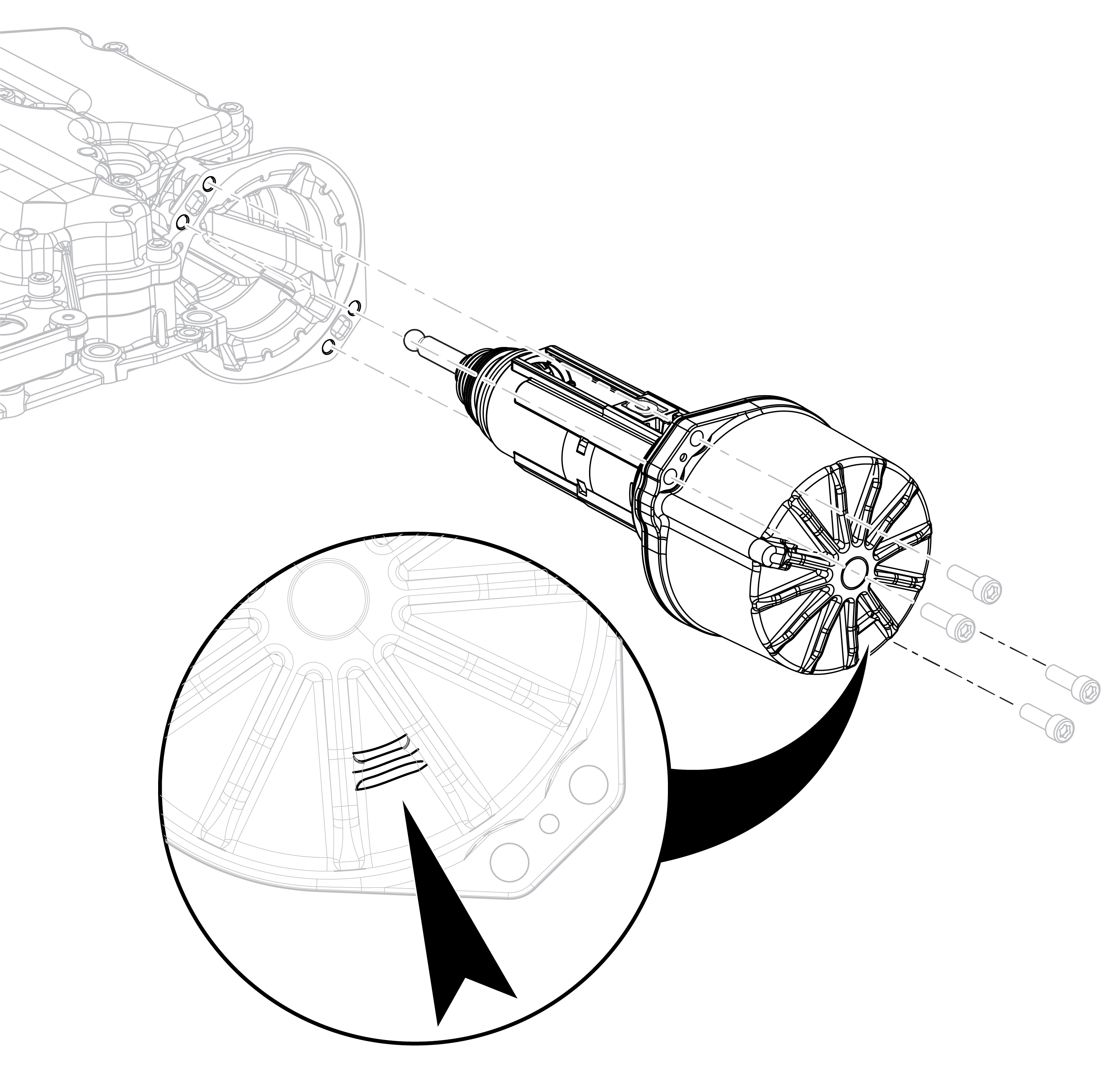

High Preload Linear Clutch Actuator (LCA)
Endurant Family LCAs are product specific. Ensure to order the correct LCA based on the transmission product series.
| Description | P/N | QTY |
|---|
| 1 | LCA | A-10004457 | 1 |
Note: A-10004457 is the High Preload LCA and is identified by the casting mark at the 5:00 position.

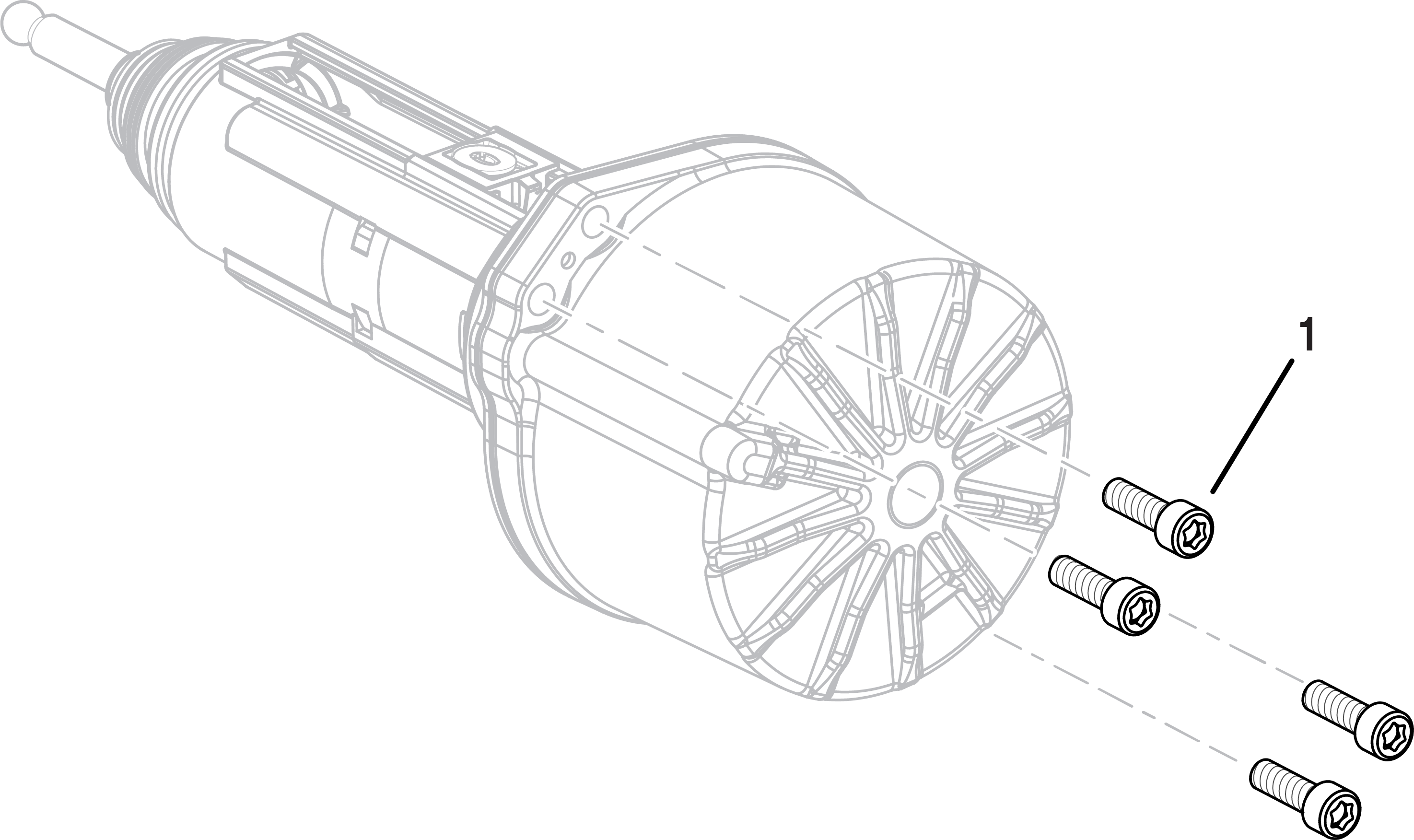

LCA Mounting Cap Screws
| Description | P/N | QTY |
|---|
| 1 | LCA Cap Screw (M8 X 1.25 X 30) | X-8-0847M-MP4 | 4 |

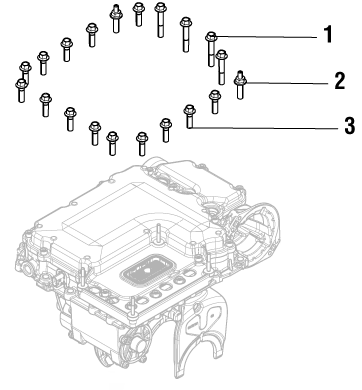

MTM Cap Screws
| Description | P/N | QTY |
|---|
| 1 | MTM Cap Screw, Long (M10X1.5X60) | 10001222-MP4 | 4 |
| 2 | MTM Cap Screw, Special (M10X1.5X38 & M8X1.25X13) | 10001815-MP4 | 4 |
| 3 | MTM Cap Screw (M10X1.5X35) | 10001179- MP20 | 20 |
8-Bolt PTO Cover Kit
K-4385
| Description | P/N | QTY |
|---|
| 1 | 8-Bolt PTO Cover | 10001399 | 1 |
| 2 | PTO Cover Cap Screws (M12x1.75x40) | 10001483- MP8 | 8 |
Main Housing Kit
K-4364 (Non Hard Lock Bearing Design)
| Description | P/N | QTY |
|---|
| 1 | Main Housing (NSS) | S-3208 | 1 |
| 2 | I-Brake MTM to Main Housing O-ring | 13653 | 1 |
Note: The Main Shaft End-Play procedure is required if the Main Housing is replaced. One of three Main Shaft Selective Washers are required to adjust end-play, Part Numbers: 10000555, 10001759, 10001760.
Note: K-4364 was obsoleted 02/15/2023 in NAFTA. Use K-4646.

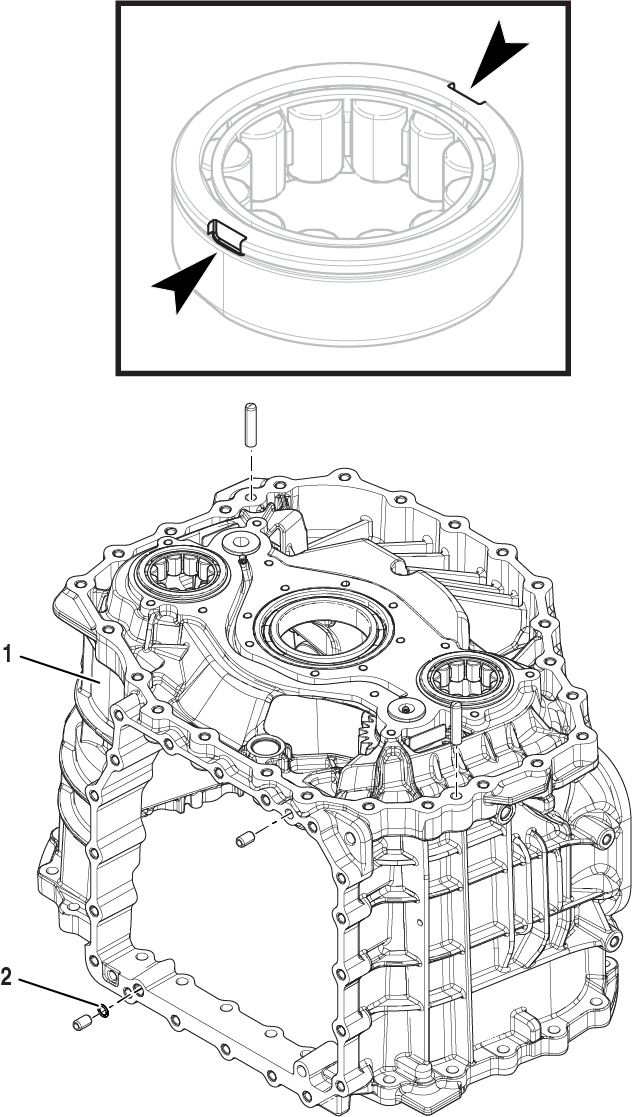

Main Housing Kit
K-4646 (Hard Lock Bearing Design)
| Description | P/N | QTY |
|---|
| 1 | Main Housing (NSS) | S-3251 | 1 |
| 2 | I-Brake MTM to Main Housing O-ring | 13653 | 1 |
Note: The Main Shaft End-Play procedure is required if the Main Housing is replaced. One of three Main Shaft Selective Washers are required to adjust end-play, Part Numbers: 10000555, 10001759, 10001760.
Note: Use Hard Lock bearing oil pump A-10004577 (Single PTO) or A-10004583 (Dual PTO) when using K-4646 Main Housing.
Main Housing Cap Screw
| Description | P/N | QTY |
|---|
| 1 | Main Housing Cap Screws (M10x1.5x40) | 10002067- MP25 | 25 |
Main Shaft Bearing
| Description | P/N | QTY |
|---|
| 1 | Main Shaft Bearing | 10000683 | 1 |
Note: The Main Shaft End-Play procedure is required if the Main Shaft Bearing is replaced. One of three Main Shaft Selective Washers are required to adjust end-play, Part Numbers: 10000555, 10001759, 10001760.
Countershaft Bearing Kit
K-4484 (Non Hard Lock Bearing Design)
| Description | P/N | QTY |
|---|
| 1 | Counter Shaft Bearings | 10000649 | 2 |
| 2 | Counter Shaft Bearing O-Rings | 5568511 | 2 |
Note: Main Housing and Clutch Housing use the same Countershaft Bearing part numbers.
Note: HD production went to Hard Lock Bearing Design November 18, 2022. K-4484 was obsoleted in NAFTA 02/15/2023. Use K-4652.

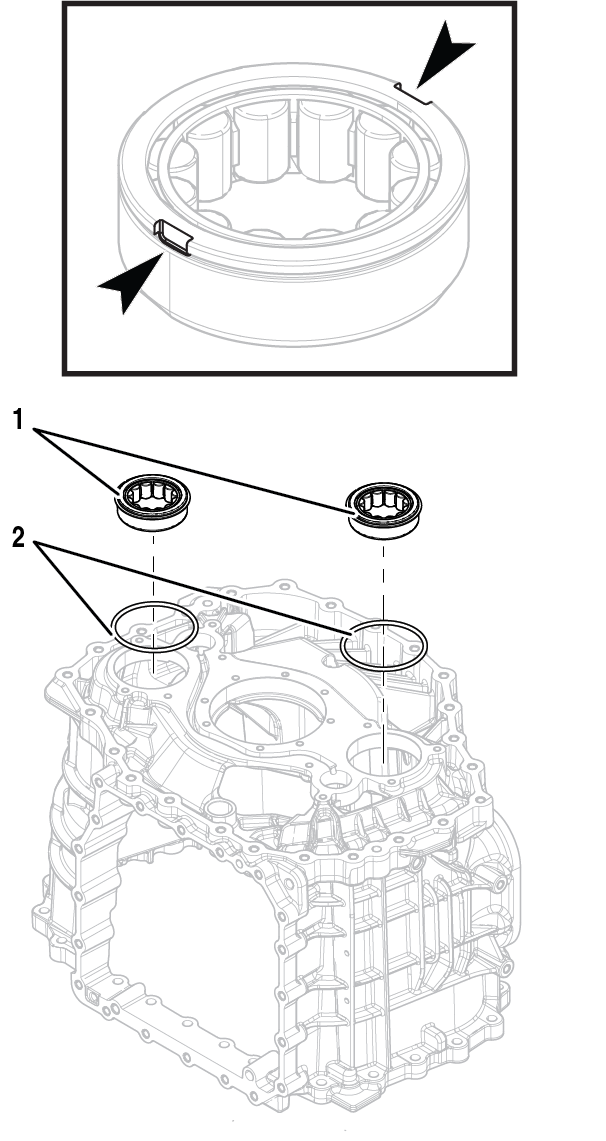

Countershaft Bearing Kit
K-4652 (Hard Lock Bearing Design)
| Description | P/N | QTY |
|---|
| 1 | Counter Shaft Bearings | 10004571 | 2 |
| 2 | Counter Shaft Bearing O-Rings | 5568511 | 2 |
Note: Main Housing and Clutch Housing use the same Countershaft Bearing part numbers. Reference countershaft bearing installation procedure for bearing orientation when pressing in new countershaft bearings.
Note: Use Hard Lock bearing oil pump A-10004577 (Single PTO) or A-10004583 (Dual PTO) when using K-4652 Hard Lock Bearing Design Kit in a main housing built prior to 02/15/2023.
Main Shaft Kit
K-4366
| Description | P/N | QTY |
|---|
| 1 | Main Shaft (NSS) | S-3221 | 1 |
| 2 | Main Shaft Key | 10000560 | 1 |
| 3 | Main Shaft Washer 6.525 mm (0.257 in) | 10000555 | 5 |
| 4 | Main Shaft Selective Washer 6.712 mm (0.264 in) | 10001759 | 1 |
| 5 | Main Shaft Selective Washer 6.900mm (0.272 in) | 10001760 | 1 |
Main Shaft Selective Washer Kit
K-4486
| Description | P/N | QTY |
|---|
| 1 | Main Shaft Washer 6.525 mm (0.257 in) | 10000555 | 1 |
| 2 | Main Shaft Selective Washer 6.712 mm (0.264 in) | 10001759 | 1 |
| 3 | Main Shaft Selective Washer 6.900mm (0.272 in) | 10001760 | 1 |
Note: The Main Shaft End-Play Service Procedure is required if one or more of the following components are replaced:
- Clutch Housing
- Main Housing
- Input Shaft
- Input Shaft Bearing
- Main Shaft Bearing
Failure to determine and install the ideal Main Shaft Selective Washer results in incorrect Main Shaft End-Play and transmission component damage.
Main Shaft Parts
| Description | P/N | QTY |
|---|
| 1 | Reverse Gear | 10000556 | 1 |
| 2 | Rail C and D Sliding Clutches | 10000557 | 2 |
| 3 | Primary Driven Gear | 10000898 | 1 |
| 4 | Secondary Driven Gear | 10000899 | 1 |
| 5 | Primary Drive Gear | S-3206 | 1 |
Drive Gear - Front Small Parts Kit
K-4367
| Description | P/N | QTY |
|---|
| 1 | Spherical Washer - Front | 10000545 | 1 |
| 2 | Bearing Race - Front/Rear | S-3218 | 1 |
| 3 | Needle Bearing - Front/Rear | 10001006 | 1 |
| 4 | Thrust Bearing - Front/Rear | 10001392 | 1 |
| 5 | Thrust Washer - Front/Rear | 10001393 | 1 |
| 6 | Wave Spring - Front | 10001685 | 1 |
Drive Gear - Rear Small Parts Kit
K-4369
| Description | P/N | QTY |
|---|
| 1 | Wave Spring - Rear | 10000978 | 1 |
| 2 | Thrust Washer - Front/Rear | 10001393 | 1 |
| 3 | Thrust Bearing - Front/Rear | 10001392 | 1 |
| 4 | Needle Bearing - Front/Rear | 10001006 | 1 |
| 5 | Bearing Race - Rear | S-3219 | 1 |
Upper & Lower Countershaft (Single PTO) Kit
Converting between a Single PTO transmission and a Dual PTO transmission voids transmission warranty and could result in transmission component damage.
K-4370
| Description | P/N | QTY |
|---|
| 1 | Upper Countershaft | S-3211 | 1 |
| 2 | Lower Countershaft | S-3210 | 1 |
| 3 | Lower and Upper Countershaft Flat Washer | 10001532 | 2 |
| 4 | Lower and Upper Countershaft Snap Ring | 4302082 | 2 |
Upper & Lower Countershaft (Dual PTO) Kit
Converting between a Single PTO transmission and a Dual PTO transmission voids transmission warranty and could result in transmission component damage.
K-4371
| Description | P/N | QTY |
|---|
| 1 | Upper Countershaft | S-3212 | 1 |
| 2 | Lower Countershaft | S-3210 | 1 |
| 3 | Lower and Upper Countershaft Flat Washer | 10001532 | 2 |
| 4 | Lower and Upper Countershaft Snap Ring | 4302082 | 2 |
Upper Lube Tube Kit
K-4384
| Description | P/N | QTY |
|---|
| 1 | Lube Tube Cap Screw (NSS) | X-8-0629M | 1 |
| 2 | Upper Lube Tube (NSS) | A-10001512 | 1 |
Lower Lube Tube Kit
K-4386
| Description | P/N | QTY |
|---|
| 1 | Lube Tube Cap Screw (NSS)) | X-8-0629M | 1 |
| 2 | Lower Lube Tube (NSS) | A-10001513 | 1 |
Reverse Idler Kit
K-4365
| Description | P/N | QTY |
|---|
| 1 | Reverse Idler Shaft | S-3209 | 2 |
| 2 | Reverse Idler Thrust Washer | 10000665 | 4 |
| 3 | Reverse Idler Gear Bearing | 10001013 | 2 |
| 4 | Reverse Idler Gear | 10000664 | 2 |
