UltraShift PLUS
TRSM0940 EN-US
|
March 2024 - A

Rail Position Sensor

Special Instructions

None

Special Tools

  • Basic hand tools

Component Identification

_Graphics/LineArt/trsm0930p7a.png

1. Cap Screw

2. 3-Way Rail Position Sensor

3. Gasket

Rail Position Sensor Removal

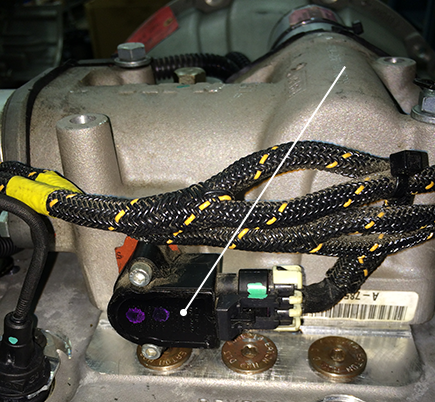

  1. Disconnect the Transmission Harness from the Rail Position Sensor.

    _Graphics/Web/TRTS0980_rail sensor 1.png

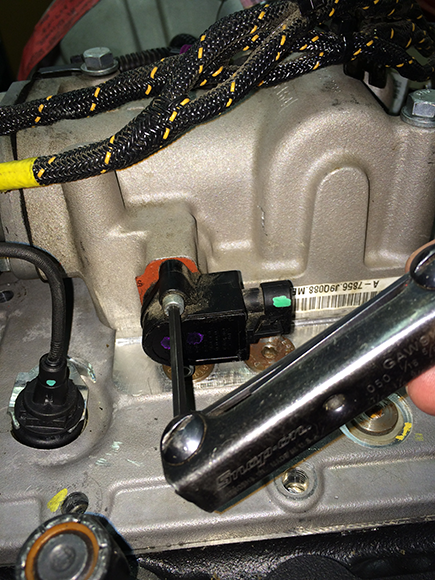

  2. Using a 5/32” hex key wrench, remove the 2 sensor hex key mounting screws.

    Caution
    Carefully allow the sensor to rotate to a relaxed position, or the sensor can snap when the hex key mounting screws are removed.
    _Graphics/Web/TRTS0980_rail sensor 2.png

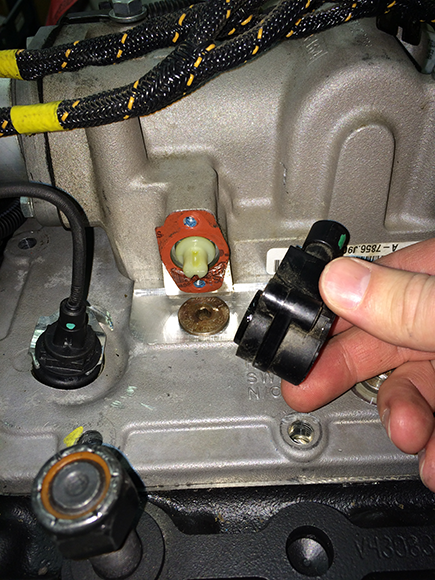

  3. Remove the Rail Position Sensor and gasket from the housing.

    _Graphics/Web/TRTS0980_rail sensor 3.png

Rail Position Sensor Installation

  1. Align sensor tabs with the slot in the X-Y Shifter Rail. Then, insert the Rail Position Sensor, with gasket, into its mounting location.

    Note: Install the sensor, so connector opening faces right side of the Transmission. (As viewed from the rear of the transmission)

    _Graphics/Web/TRTS0980_rail sensor 3.png

  2. Using a 5/32” hex key wrench, install the 2 hex key mounting screws and tighten to 21–27 lb-in (2.3–3.0 N•m).

    Caution
    Carefully hold sensor in position while installing the hex key mounting screws, or sensor can snap.
    _Graphics/Web/TRTS0980_rail sensor 2.png

  3. Reconnect the Transmission Harness to the Rail Position Sensor.

    _Graphics/Web/TRTS0980_rail sensor 1.png
