Endurant HD
TRSM0950 EN-US
|
February 2025 - A

Bearing Lock Templates

Note: When printing templates, set printer properties at 100% and paper size to “Tabloid” to achieve proper sizing.

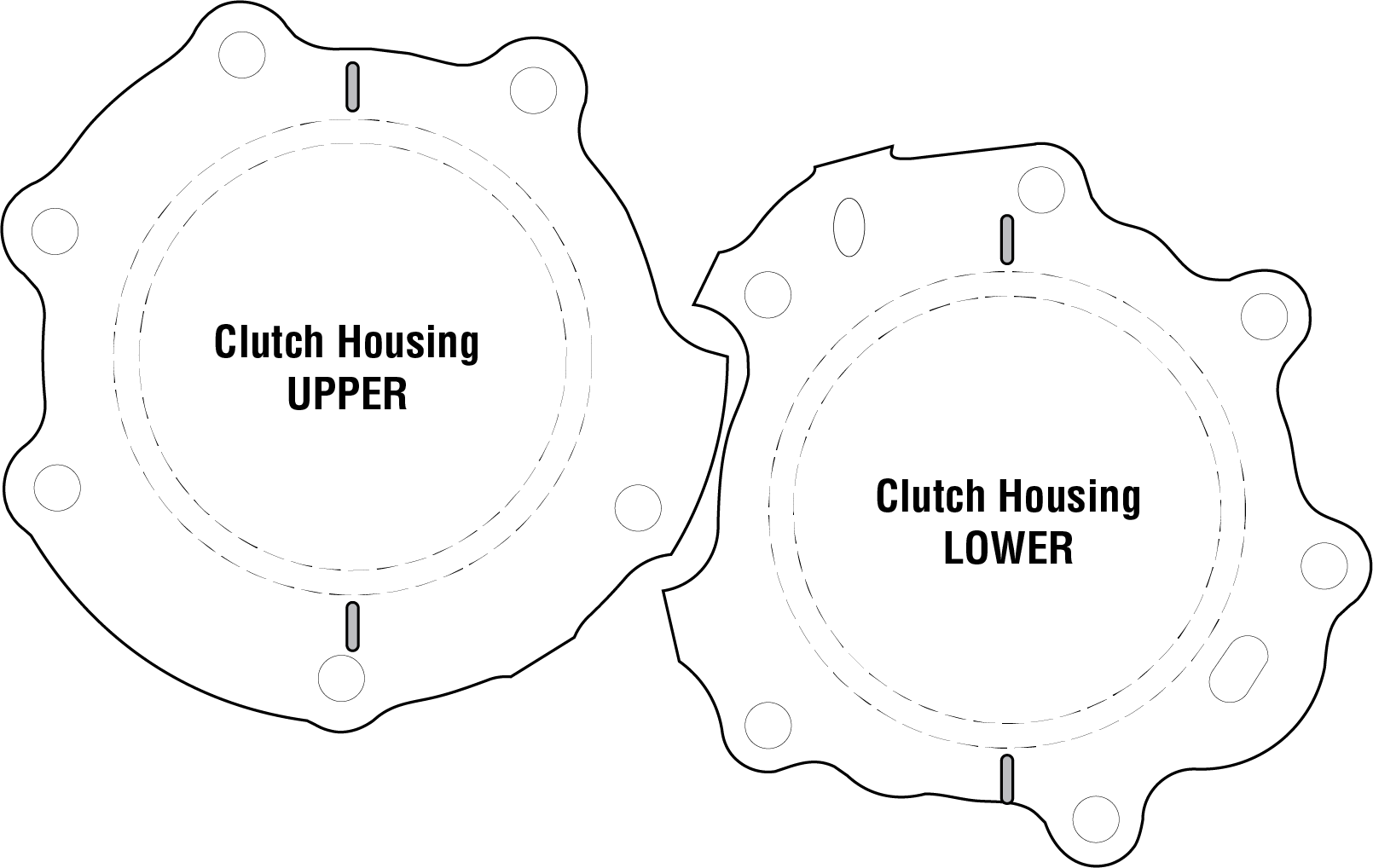

Clutch Housing Bearing Templates

_Graphics/_LineArt/TRSM0950_Template_ClutchHousings.png

Front Input Bearing Template

_Graphics/_LineArt/TRSM0950_Template_FrontInputBearing.png

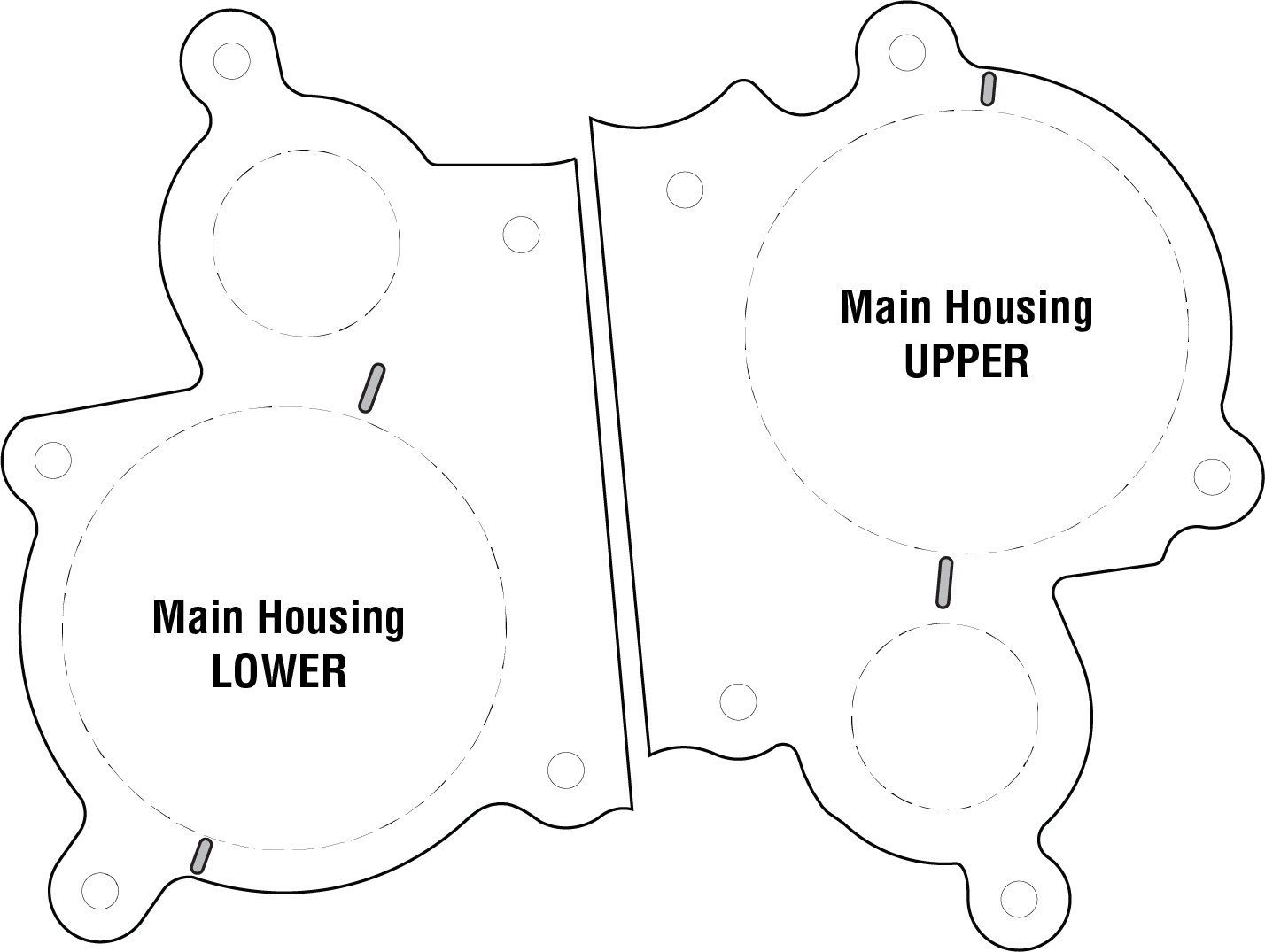

Main Housing Bearing Templates

_Graphics/_LineArt/TRSM0950_Template_MainHousings.png
