Intermediate Housing

Special Instructions

None

Special Tools

  • Main Shaft Bearing Installer (RR1077TR)
  • Input Shaft Bearing Removal and Installation Tool (RR1075TR)
  • Universal Driver Handle (OE8044-T0)
  • Counter Shaft Bearing Guide (RR1097TR)
  • Counter Shaft Bearing Nut (RR1098TR)
  • Counter Shaft Puller Screw (RR1103TR) Long
  • Counter Shaft Removal Cup (RR1102)
  • Input Bearing Guide (RR1095TR)

Component Identification

_Graphics/_LineArt/TRSM0960_PumpAssy&IntermediatePlate_DA_ID.png

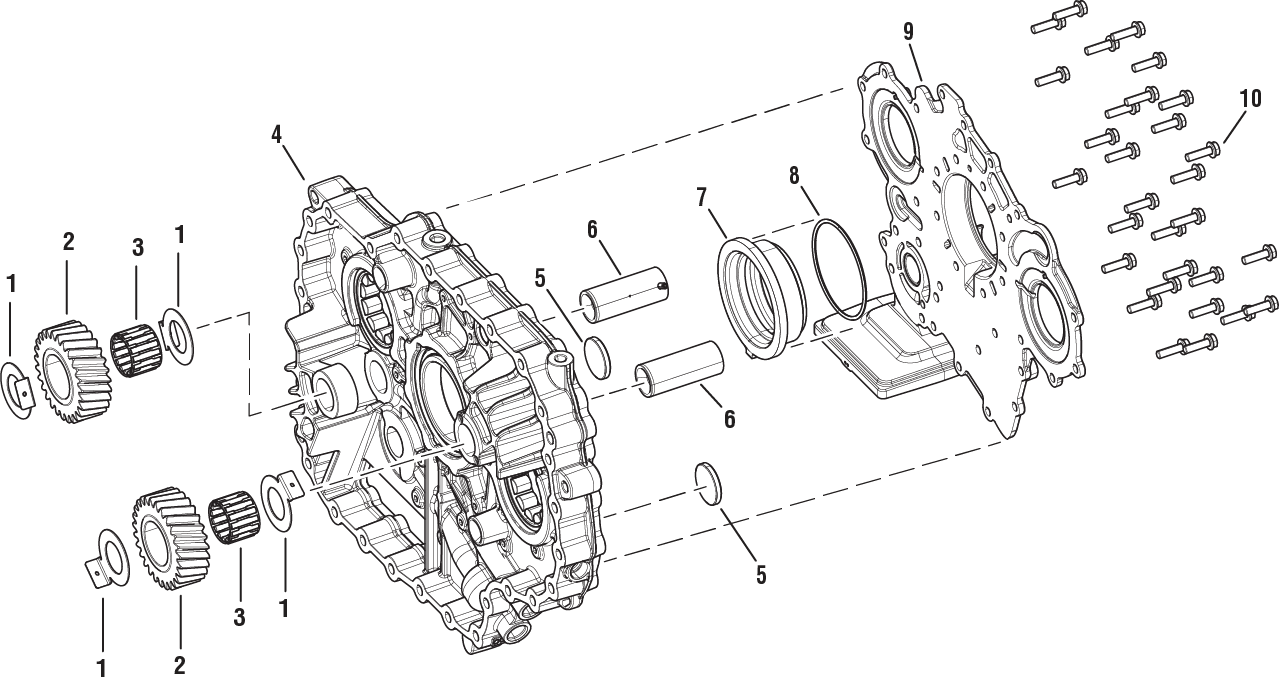

1. Reverse Idler Thrust Washer (x4)

2. Reverse Idler Gear (x2)

3. Roller Needle Bearing (x2)

4. Intermediate Plate Assembly

5. Magnet (x2)

6. Reverse Idler Assembly (x2)

7. Planetary Shaft Efficiency Spacer

8. O-ring

9. Pump Assembly

10. Hex Screw (x30)

Remove the Fluid Pressure Sensor (FPS)

  1. Remove the Transmission FPS (24 mm) threaded into the main housing.

    _Graphics/_Raster/FPS_Remove.jpg

Disassemble the Intermediate Housing

  1. Place Intermediate Housing vertically on a bench with the Main Housing mating surface down.

    Caution
    Intermediate Housing weighs approximately 25 lbs. Keep fingers clear of pinch point between Intermediate Housing and other surfaces. Dropping Intermediate Housing could result in component damage and/or personal injury.

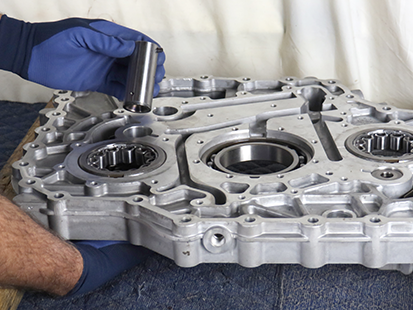

  2. Remove Lower Reverse Idler Gear Shaft from Intermediate Housing by pushing shaft up.

    _Graphics/_Raster/IMG_0735.png

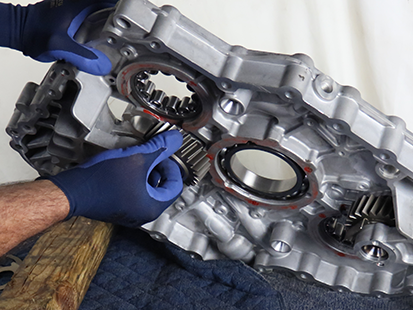

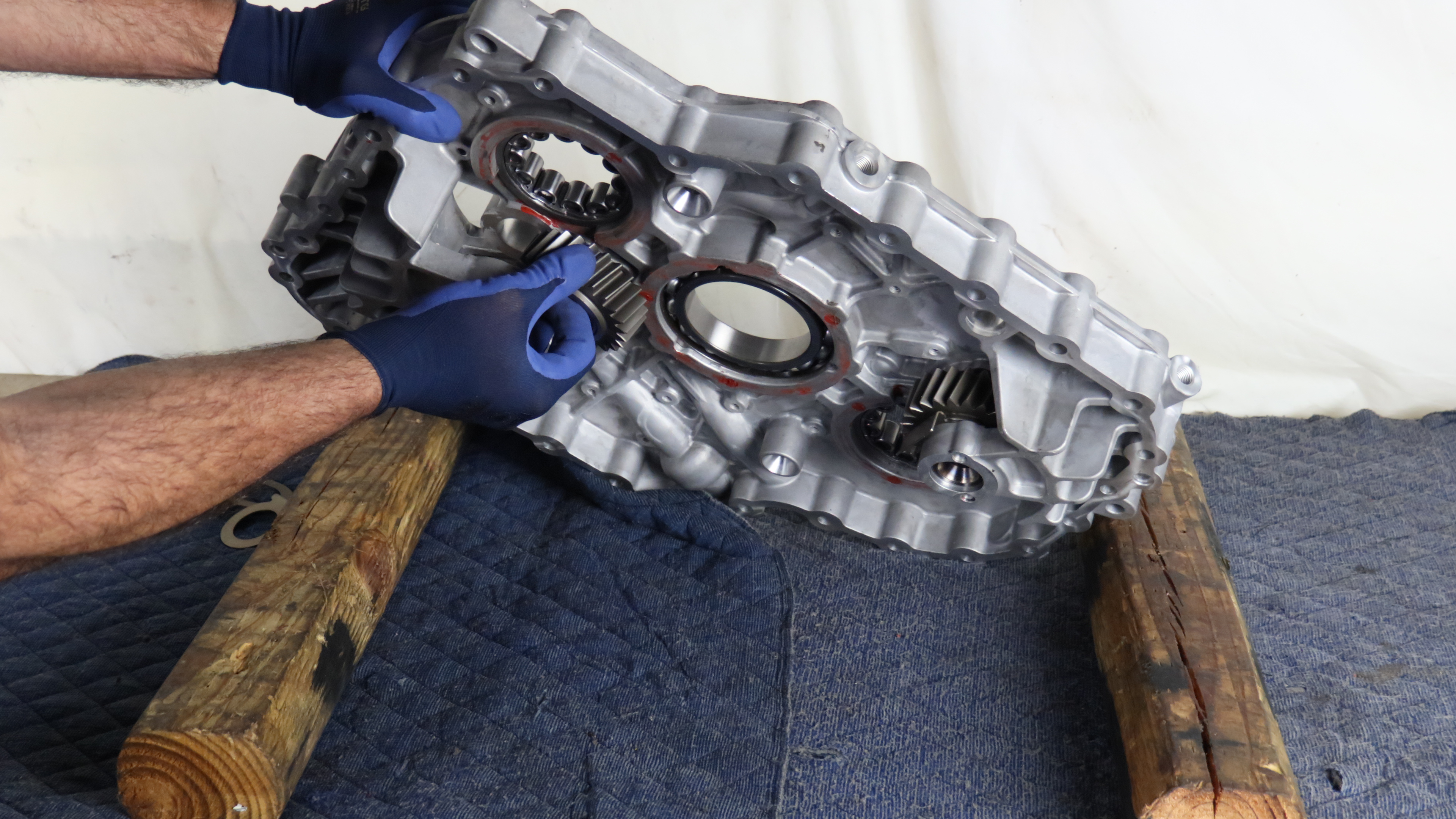

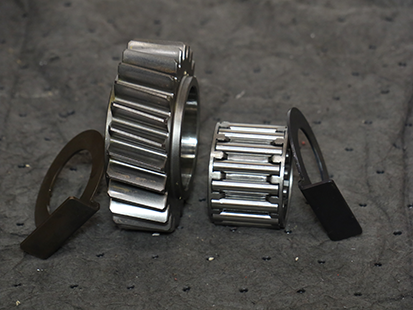

  3. Remove Lower Reverse Idler Gear, washers and bearing from Intermediate Housing.

    _Graphics/_Raster/IMG_0736.JPG_Graphics/_Raster/TRSM0950_MHOR_0627.png

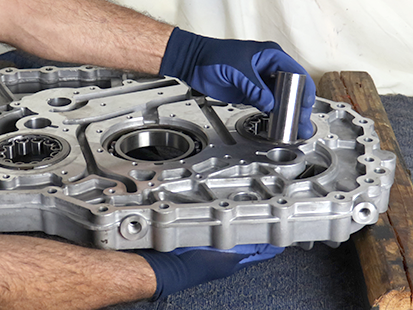

  4. Remove Upper Reverse Idler Gear Shaft from Intermediate Housing by pushing shaft up.

    _Graphics/_Raster/IMG_0739.png

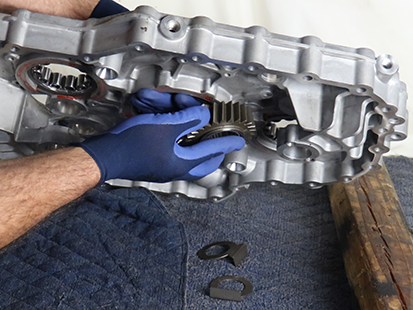

  5. Remove Upper Reverse Idler Gear, washers and bearing from Intermediate Housing.

    _Graphics/_Raster/IMG_0740.png_Graphics/_Raster/TRSM0950_MHOR_0627.png

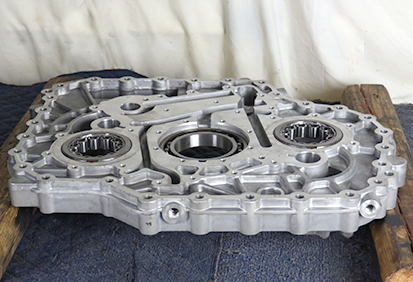

  6. Place Intermediate Housing on a bench and support housing to protect all surfaces.

    Caution
    Intermediate Housing weighs approximately 25 lbs. Keep fingers clear of pinch point between Intermediate Housing and other surfaces. Dropping Intermediate Housing could result in component damage and/or personal injury.
    Notice
    Support the Intermediate Housing to avoid damaging the housing and sealing surface.
    _Graphics/_Raster/IMG_0741.png

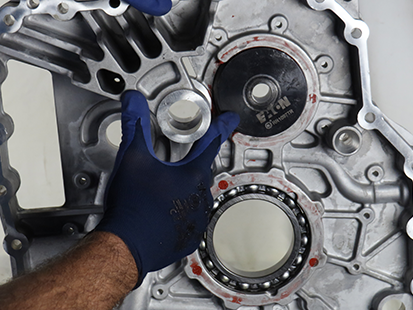

  7. Place Countershaft Bearing Guide (RR1097TR) onto Rear Upper Countershaft Bearing.

    _Graphics/_Raster/IMG_0743.png

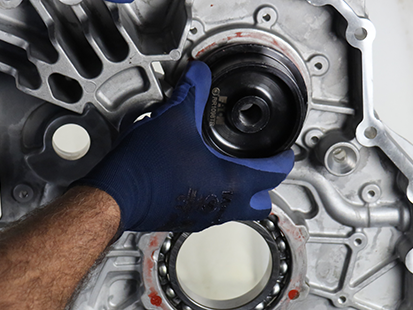

  8. Place Countershaft Bearing Nut (RR1098TR) against the Countershaft Bearing guide (RR1097TR).

    _Graphics/_Raster/IMG_0745.png

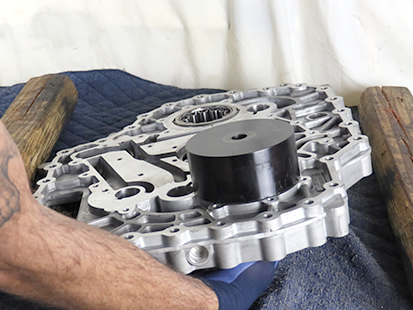

  9. While holding the Countershaft Bearing Guide and nut, place the Countershaft Bearing Removal Cup (RR1102TR) over Upper Countershaft Bearing in the Intermediate Housing.

    _Graphics/_Raster/IMG_0749.png

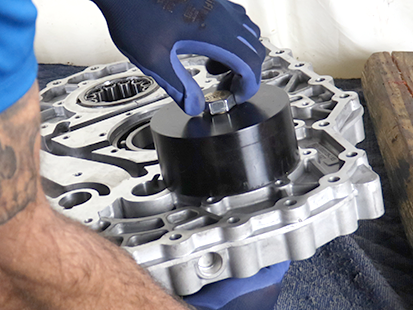

  10. Install Countershaft puller screw (RR1103TR) through the Countershaft Removal Cup (RR1102TR) and thread it into the Countershaft Bearing Nut (RR1098TR).

    _Graphics/_Raster/IMG_0752.png

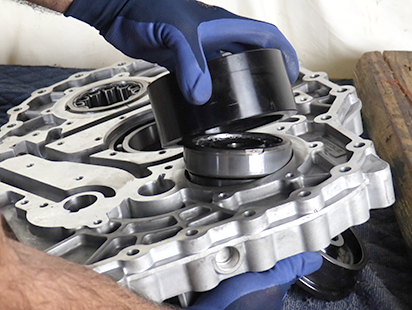

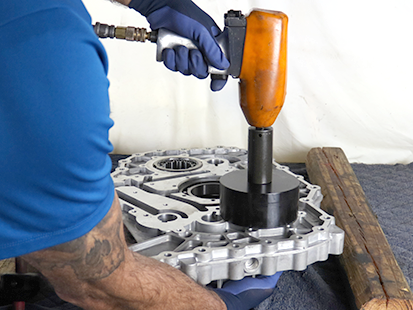

  11. Use an impact with a 27 mm socket to press out the Upper Countershaft Bearing.

    _Graphics/_Raster/IMG_0754.png_Graphics/_Raster/IMG_0755.png

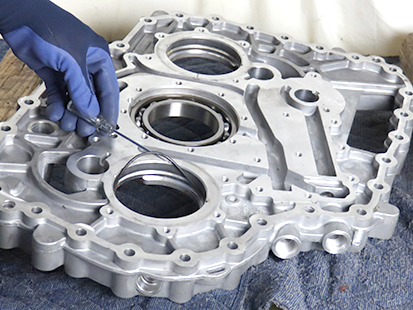

  12. Remove Countershaft Bearing O-ring from the Intermediate housing and discard.

    _Graphics/_Raster/IMG_0771.png

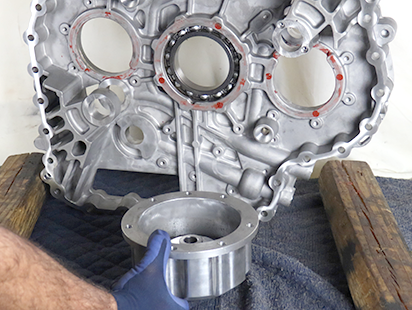

  13. Place Intermediate Housing on a bench and support housing on the Oil Pump Assembly surface with Input Bearing Guide (RR1095TR).

    _Graphics/_Raster/IMG_0772.png_Graphics/_Raster/IMG_0773.png
  14. Place Input Shaft Bearing Removal and Installation Tool (RR1075TR) and Universal Driver Handle (OE8044-T0) onto Main Shaft Bearing.

    _Graphics/_Raster/IMG_0775.png_Graphics/_Raster/IMG_0777.png
  15. Use a hammer to drive the Main Shaft Bearing out of Intermediate Housing.

    Notice
    Support the Intermediate Housing to avoid damaging the housing and sealing surface.
    _Graphics/_Raster/IMG_0778.png_Graphics/_Raster/IMG_0780.png
  16. Remove main Bearing O-Ring from Intermediate Housing

    _Graphics/_Raster/IMG_0782.png
  17. Place Intermediate Housing on a bench and support housing to protect all surfaces.

    _Graphics/_Raster/IMG_0741.png

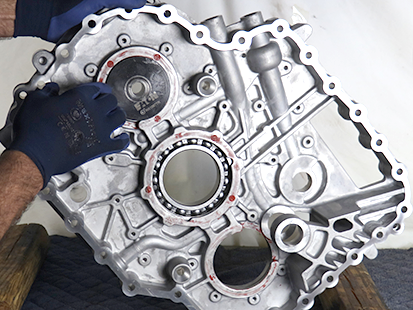

  18. Place Countershaft Bearing Guide (RR1097TR) onto Rear Lower Countershaft Bearing.

    _Graphics/_Raster/IMG_0761.png

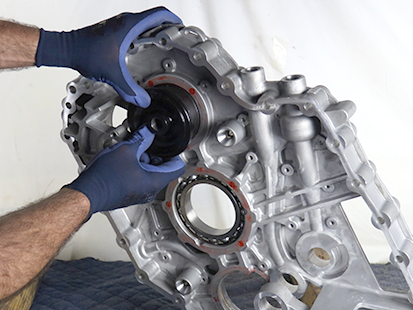

  19. Press Rear Lower Countershaft Bearing out of Intermediate Housing. Place Countershaft Bearing Nut (RR1098TR) against Countershaft Bearing guide (RR1097TR).

    _Graphics/_Raster/IMG_0763.png

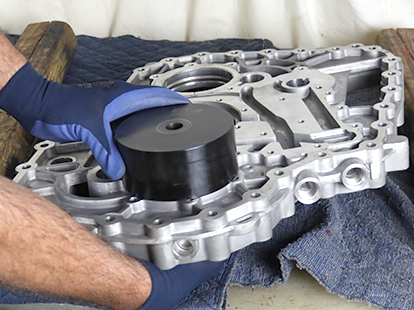

  20. While holding Countershaft Bearing Guide (RR1097TR), place Countershaft Beating removal cup (RR1102TR) over Lower Countershaft Bearing.

    _Graphics/_Raster/IMG_0766.png

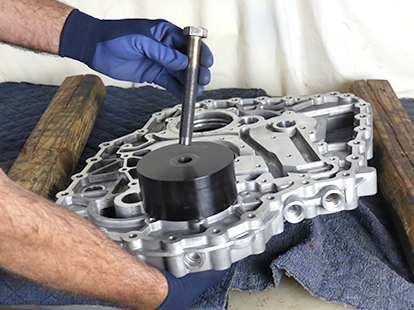

  21. Install and thread Countershaft Puller Cap Screw (RR1103TR) into the Countershaft Bearing Nut (RR1098TR).

    _Graphics/_Raster/IMG_0767.png
  22. Use an Impact with a 28 mm socket and press Bearing out of the Intermediate Housing.

    _Graphics/_Raster/IMG_0754.png_Graphics/_Raster/IMG_0755.png

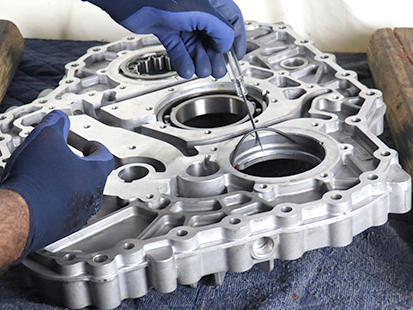

  23. Remove Countershaft Bearing O-ring and discard.

    _Graphics/_Raster/IMG_0758.png

Assemble the Intermediate Housing

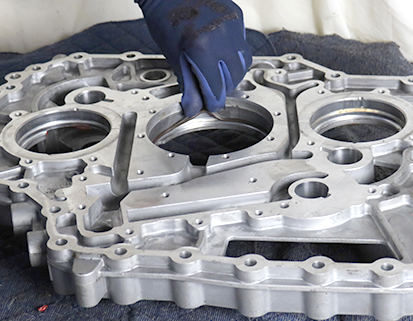

  1. Install Intermediate Housing O-Ring into the Main Bearing opening.

    _Graphics/_Raster/IMG_0784.png

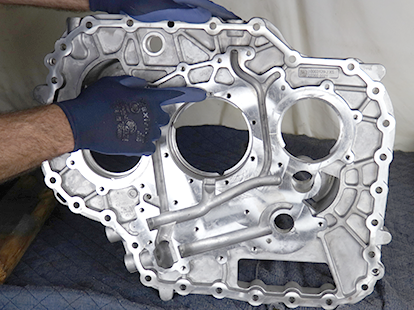

  2. Identify Notch/Window in the Intermediate Housing for Main Bearing lock pin location.

    _Graphics/_Raster/IMG_0786.png
  3. Place Main Shaft Bearing into Intermediate Housing with lock pin in the notch/window of the Intermediate Housing.

    _Graphics/_Raster/IMG_0789.png
  4. Place Intermediate Housing on the Input Bearing Guide (RR1095TR) to properly support Intermediate Housing when installing bearing.

    Notice
    Support the Intermediate Housing to avoid damaging the housing and sealing surface.
    Notice
    Do not over-press bearing into Intermediate Housing. Over-pressing could result in component damage.
    _Graphics/_Raster/IMG_0790.png

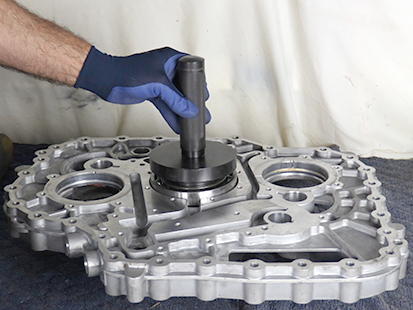

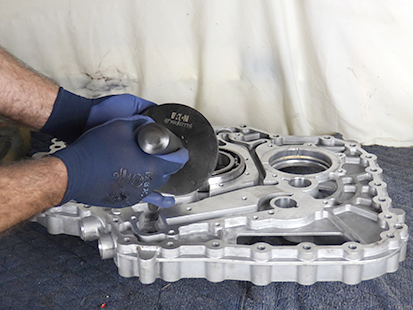

  5. Place Main Shaft Bearing Installer (RR1077TR) and Universal Driver Handle (OE8044-T0) onto Main Shaft Bearing.

    _Graphics/_Raster/IMG_0793.png_Graphics/_Raster/IMG_0794.png
  6. Use a hammer to drive Main Shaft Bearing into Intermediate Housing.

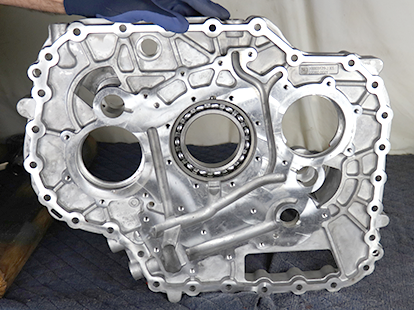

    _Graphics/_Raster/IMG_0795.png_Graphics/_Raster/IMG_0797.png

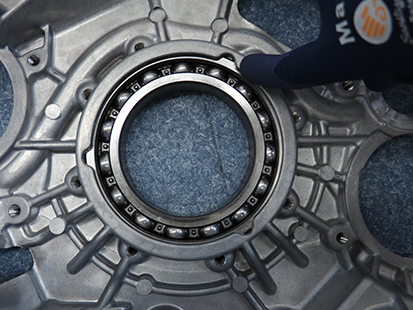

  7. Verify Main Shaft Bearing is fully seated into housing.

    _Graphics/_Raster/TRSM0950_MHCB_7233.png

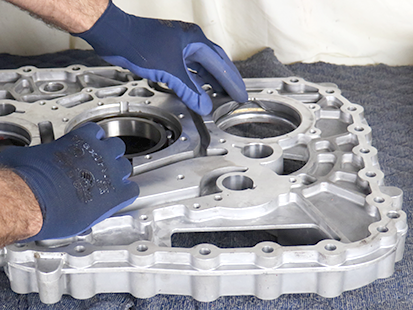

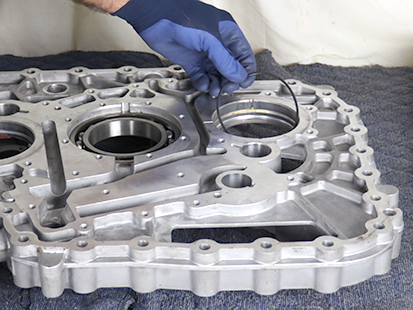

  8. Install Countershaft Bearing O-ring on Rear Lower Countershaft Bearing Opening of Intermediate Housing until fully seated.

    _Graphics/_Raster/IMG_0798.png_Graphics/_Raster/IMG_0799.png

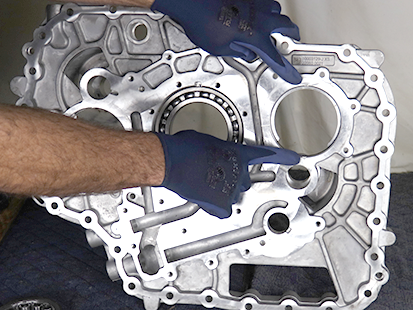

  9. Locate both Bearing lock notches on Intermediate Housing.

    _Graphics/_Raster/IMG_0800.png

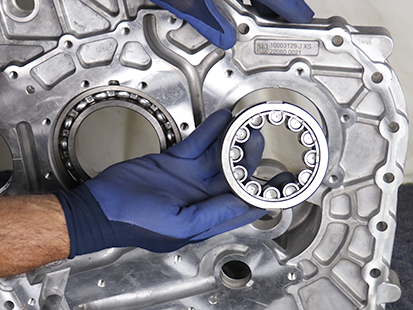

  10. Place Rear Lower Countershaft Bearing into Intermediate Housing, aligning both flat spots on outer Bearing Race to marks on the Intermediate Housing.

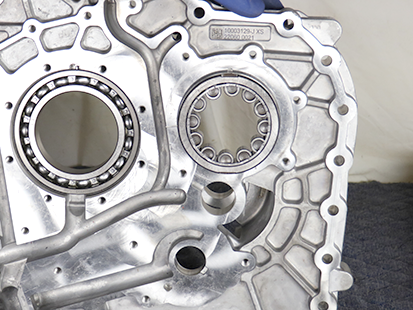

    _Graphics/_Raster/IMG_0802.png_Graphics/_Raster/IMG_0803.png

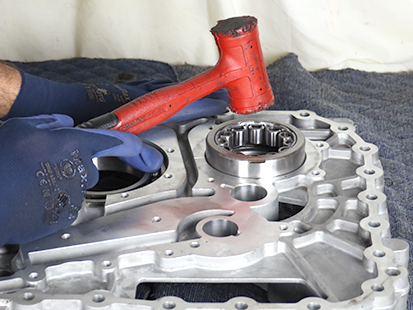

  11. Lightly tap Rear Lower Countershaft Bearing into Intermediate Housing using a dead Blow hammer to ensure the bearing is evenly started in bearing bore.

    _Graphics/_Raster/IMG_0804.png

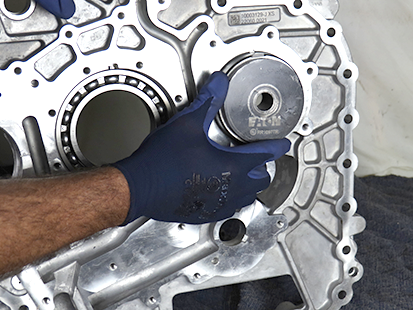

  12. Place Countershaft Bearing Installer (RR1097TR) onto Rear Lower Countershaft Bearing.

    _Graphics/_Raster/IMG_0806.png

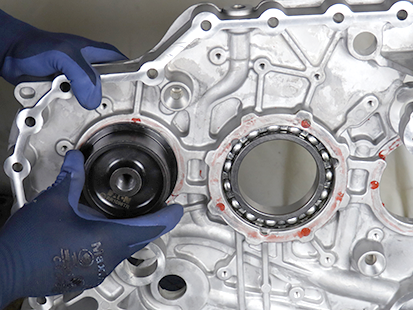

  13. Hold Countershaft Bearing Nut (RR1098TR) on back side of Lower Countershaft Bearing opening.

    _Graphics/_Raster/IMG_0808.png

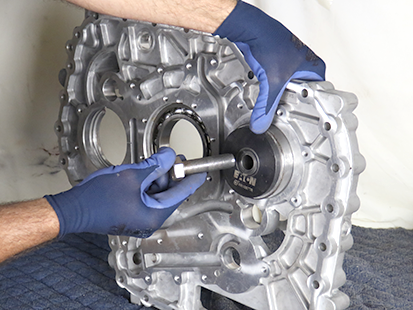

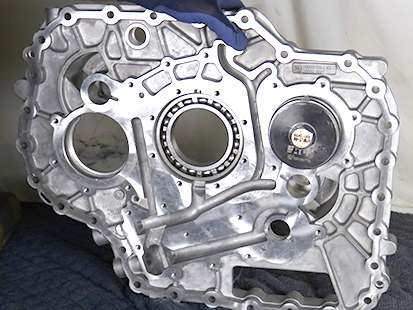

  14. Install Input Bearing Puller Screw (RR1104TR) through Countershaft Bearing Installer and thread into Countershaft Bearing Nut (RR1098TR).

    _Graphics/_Raster/IMG_0809.png_Graphics/_Raster/IMG_0810.png

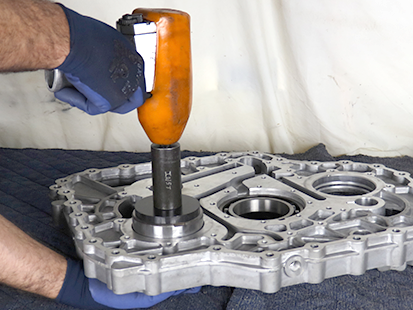

  15. Press Rear Lower Countershaft Bearing into Intermediate Housing using a 28 mm socket on an Impact until fully seated.

    Notice
    Do not over press bearing into Intermediate Housing. Over pressing could result in component damage and/or personal injury.
    _Graphics/_Raster/IMG_0811.png_Graphics/_Raster/IMG_0812.png

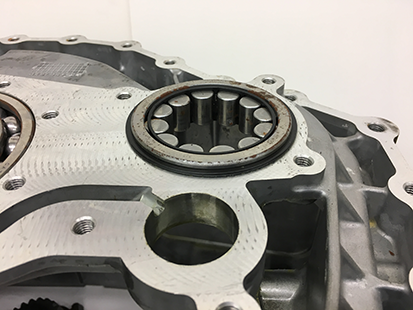

  16. Verify Rear Lower Countershaft Bearing is fully seated into housing.

    _Graphics/_Raster/MainHsgAssyLwCsBrg.png
  17. Install Countershaft Bearing O-ring on Rear Upper Countershaft Bearing Opening of Intermediate Housing until fully seated.

    _Graphics/_Raster/IMG_0798.png_Graphics/_Raster/IMG_0799.png
  18. Locate both Bearing Lock notches on Intermediate Housing.

    _Graphics/_Raster/IMG_0800.png
  19. Place Rear Upper Countershaft Bearing into Intermediate Housing, aligning both flat spots on outer bearing race to marks on Intermediate Housing.

    _Graphics/_Raster/IMG_0803.png
  20. Lightly tap bearing into Intermediate Housing using a dead blow hammer to ensure bearing is evenly started in bearing bore.

    _Graphics/_Raster/IMG_0804.png
  21. Place Countershaft Bearing Installer (RR1097TR) into Rear Upper Countershaft Bearing.

    _Graphics/_Raster/IMG_0806.png
  22. Hold Countershaft Bearing Nut (RR1098TR) on back side of Upper Countershaft opening.

    _Graphics/_Raster/IMG_0808.png
  23. Install Input Bearing Puller Screw (RR1104TR) through Countershaft Bearing Installer (RR1097TR) and thread into Countershaft Bearing Nut (RR1098TR).

    _Graphics/_Raster/IMG_0809.png_Graphics/_Raster/IMG_0810.png

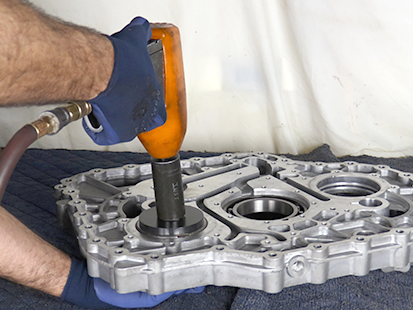

  24. Press Rear Upper Countershaft Bearing into Intermediate Housing using a 28 mm socket on an Impact until fully seated.

    Notice
    Do not over press bearing into Intermediate Housing. Over pressing could result in component damage and/or personal injury.
    _Graphics/_Raster/IMG_0812.png

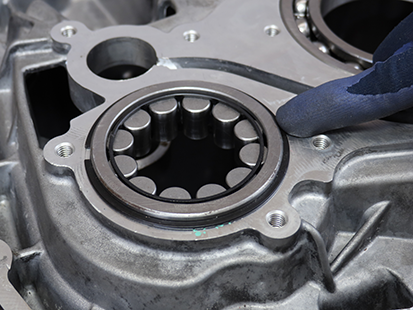

  25. Verify Rear Upper Countershaft Bearing is fully seated into housing.

    _Graphics/_Raster/TRSM0950_MHCB_7435.png

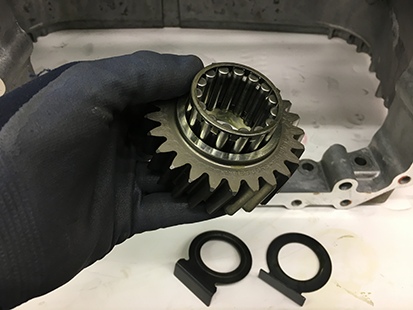

  26. Install bearing into Upper Reverse Idler Gear.

    _Graphics/_Raster/MainHsgAssy UpIdler1.png
  27. Install and hold Upper Reverse Idler Gear upper washer into Intermediate Housing.

    _Graphics/_Raster/IMG_0736.png
  28. Install Upper Reverse Idler Gear Shaft by pushing shaft into housing, through washers, bearing and gear.

    _Graphics/_Raster/IMG_0735.png

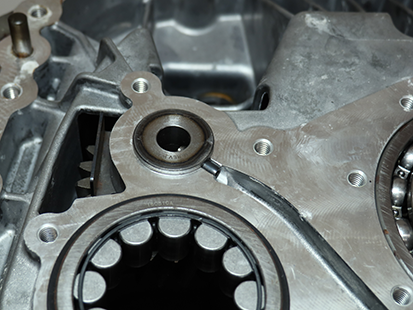

  29. Align pin with passage in housing until pin is fully seated into passage.

    Note: If necessary, use a soft faced hammer to lightly tap shaft into housing.

    _Graphics/_Raster/IMG_3339.png
  30. Install bearing into Lower Reverse Idler Gear.

    _Graphics/_Raster/MainHsgAssy UpIdler1.png
  31. Install and hold Lower Reverse Idler Gear upper washer into Intermediate Housing.

    _Graphics/_Raster/IMG_0736.png

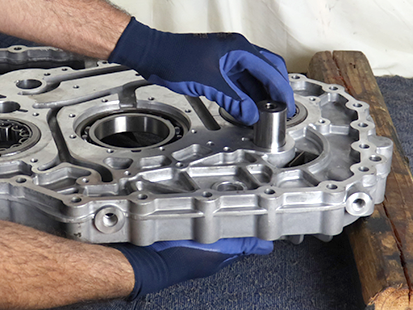

  32. Install Lower Reverse Idler Gear Shaft by pushing shaft into housing, through washers, bearing and gear.

    _Graphics/_Raster/IMG_0738.png
  33. Align pin with passage in housing until pin is fully seated into passage.

    Note: If necessary, use a soft faced hammer to lightly tap shaft into housing.

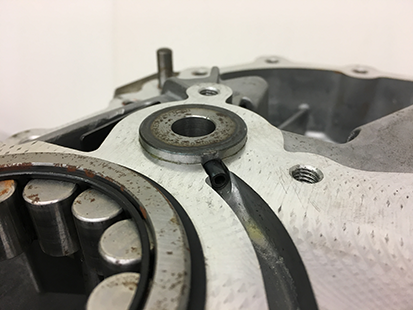

    _Graphics/_Raster/MainHsgAssy LwIdler7.png

Install the Fluid Pressure Sensor (FPS)

  1. Inspect the Fluid Pressure Sensor (FPS) and O-ring for damage. If damaged, replace the FPS; O-ring is serviced with sensor.

    _Graphics/_Raster/FPS_HoldingORing.jpg
  2. Install the Transmission FPS (24 mm) into the Main Housing and torque to 19-23 Nm (14-17 lb-ft).

    _Graphics/_Raster/FPS_HandInstall.jpg_Graphics/_Raster/FPS_IntallTorque.jpg
