Endurant XD
TRSM0960 EN-US
|
December 2024 - B

Fluid Pressure Sensor (FPS)

Special Instructions

The Fluid Pressure Sensor can be removed and installed with the transmission in-vehicle.

Special Tools

None

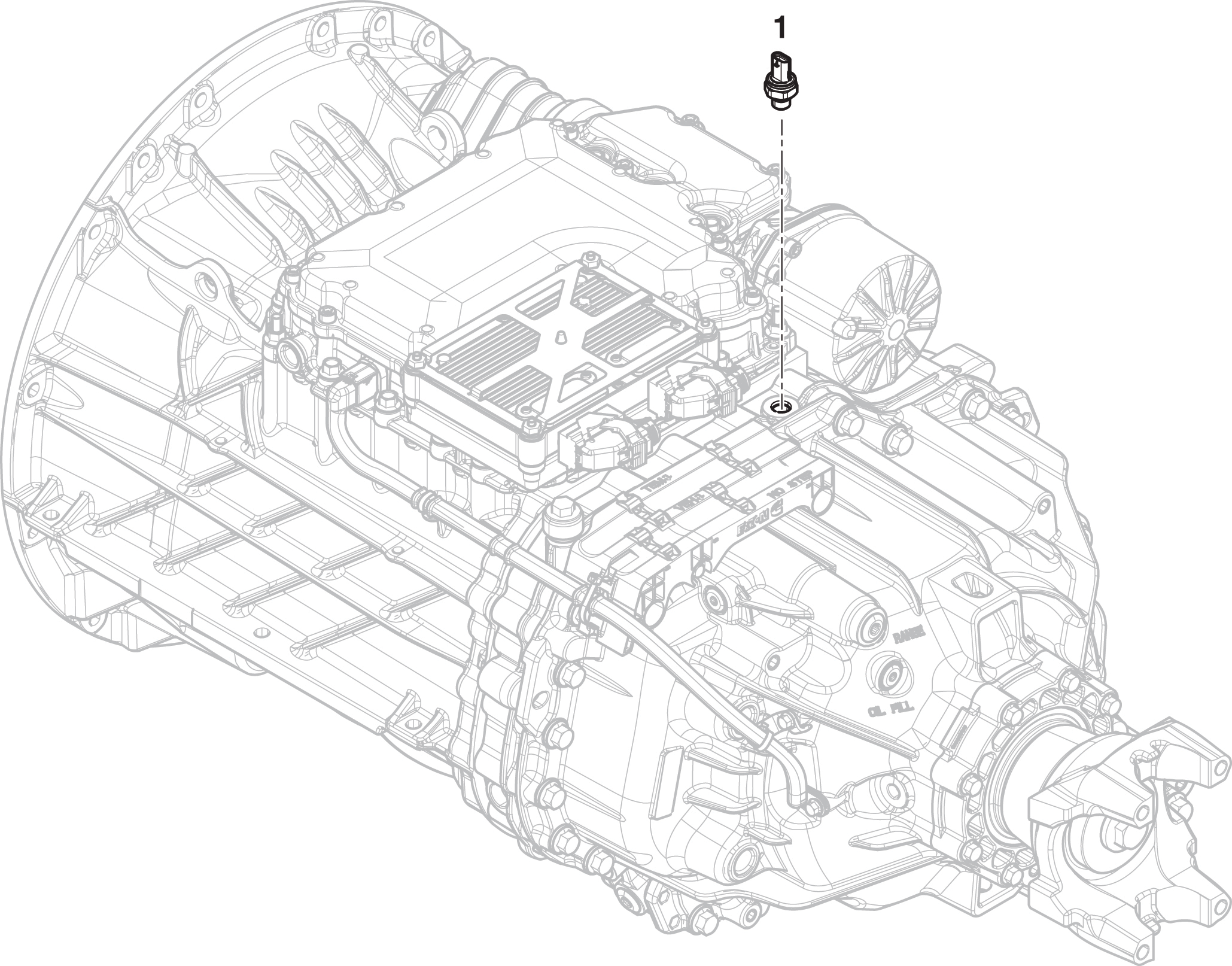

Component Identification

_Graphics/_LineArt/TRSM0960_FPS_ID.png

1. Fluid Pressure Sensor (x1)

Remove the Fluid Pressure Sensor (FPS)

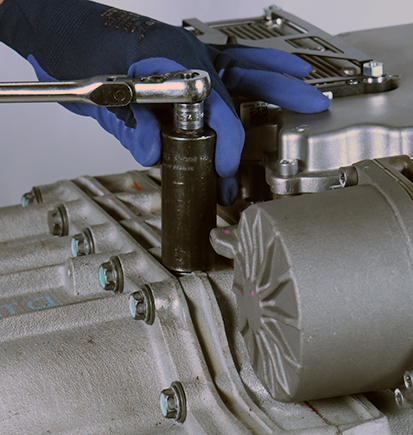

  1. Unlatch and disconnect the OEM 3-Way Transmission Fluid Pressure Sensor (FPS) Connector.

  2. Remove the Transmission FPS (24 mm) threaded into the intermediate housing.

    _Graphics/_Raster/FPS_Remove.jpg

Install the Fluid Pressure Sensor (FPS)

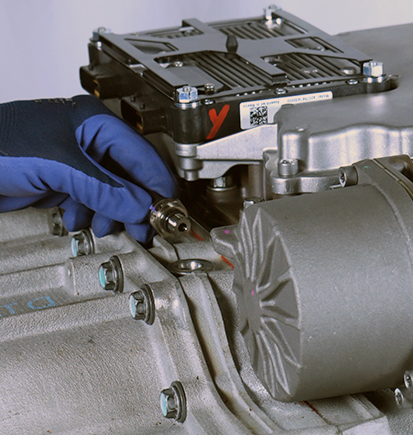

  1. Inspect the Fluid Pressure Sensor (FPS) and O-ring for damage. If damaged, replace the FPS; O-ring is serviced with sensor.

    _Graphics/_Raster/FPS_HoldingORing.jpg

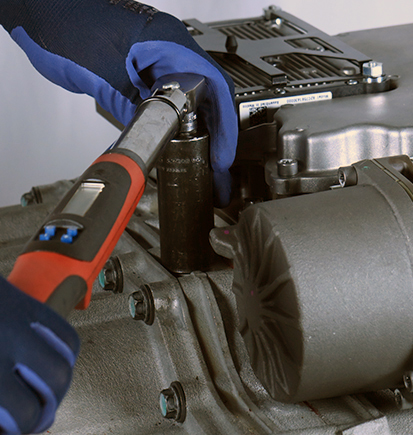

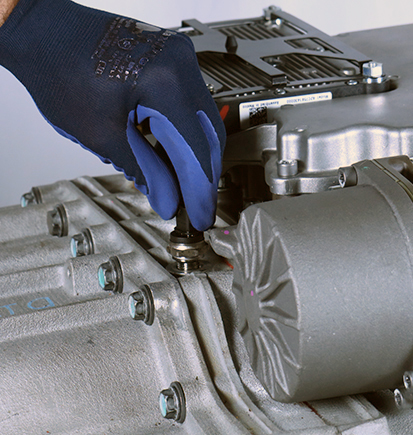

  2. Install the Transmission FPS (24 mm) into the Intermediate Housing and torque to 19-23 Nm (14-17 lb-ft).

    _Graphics/_Raster/FPS_HandInstall.jpg_Graphics/_Raster/FPS_IntallTorque.jpg

  3. Connect and latch the OEM 3-Way Transmission FPS Connector.
