Output Speed Sensor

Special Instructions

None

Special Tools

None

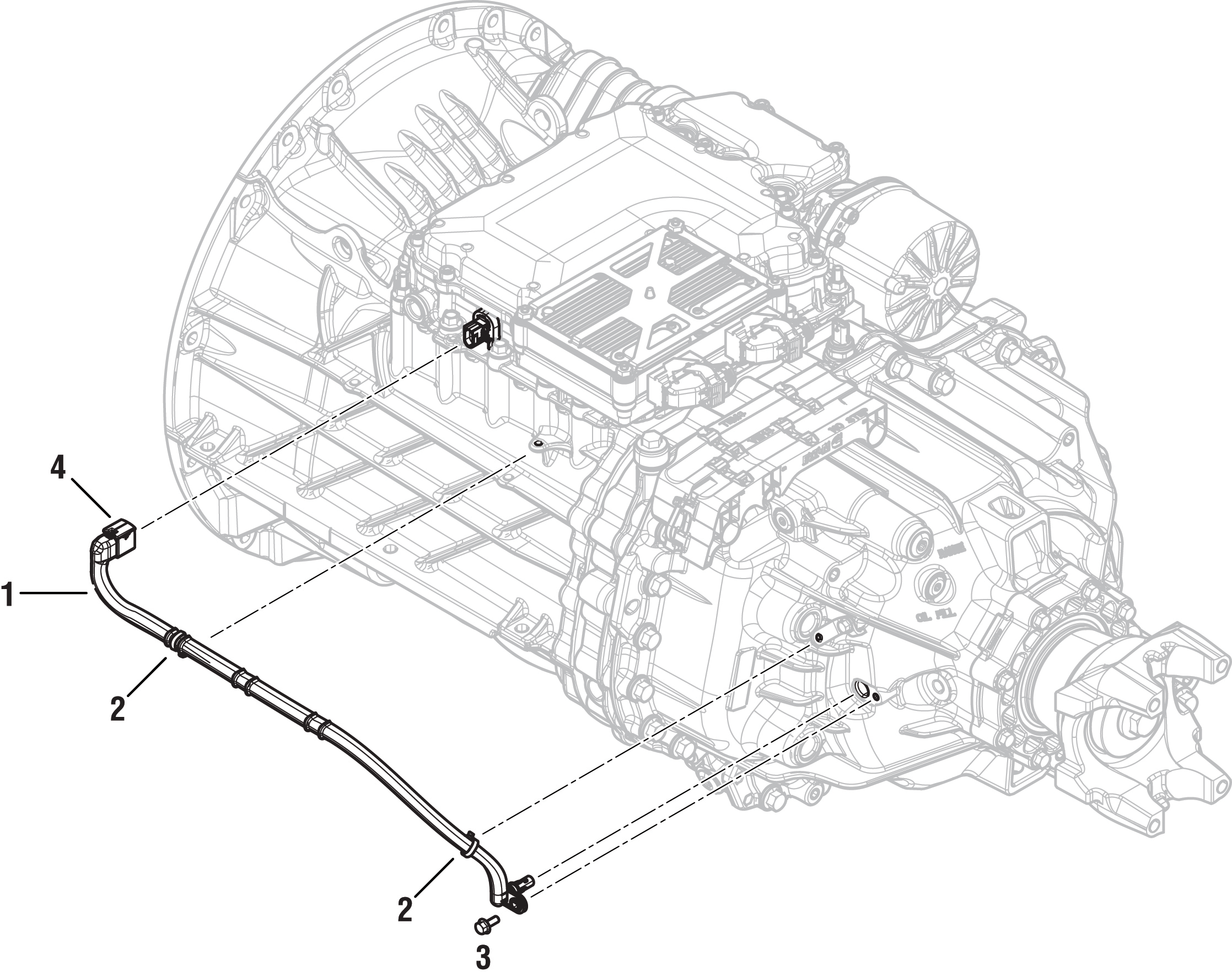

Component Identification

_Graphics/_LineArt/TRSM0960_OSS_ID.png

1. Output Speed Sensor Harness

2. Harness Retainers (x2)

3. Cap Screw - 10 mm

4. Output Speed Sensor Connector

Disconnect the Output Speed Sensor

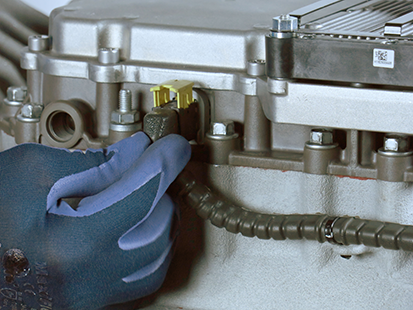

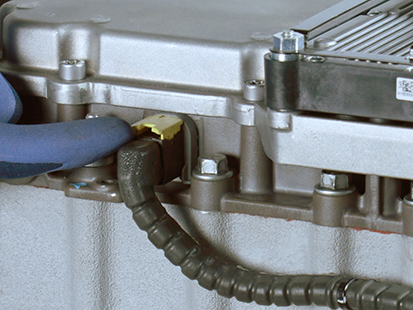

  1. Lift the latch on the Output Speed Sensor Harness at the Connector on the Mechatronic Transmission Module (MTM).

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0027.png_Graphics/_Raster/XD Photos_1121/TRSM0960_0047.png

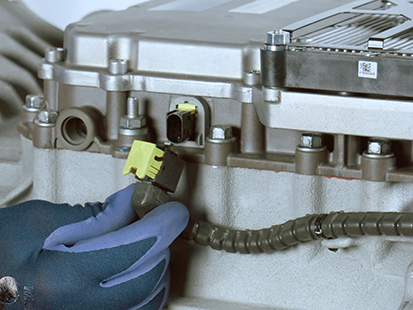

  2. Remove the Output Speed Sensor Harness from the Connector on the MTM.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0046.png

Remove the Output Speed Sensor

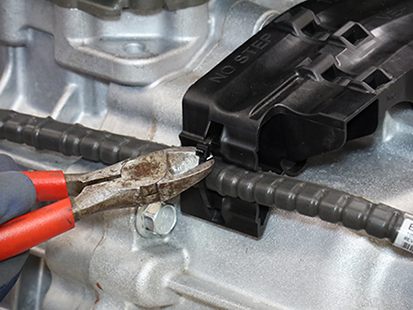

  1. Remove the Output Speed Sensor Harness tie strap at the Harness Bracket.

    _Graphics/_Raster/TRSM0950_OSS_Removal_Harness_tie_strap1.png

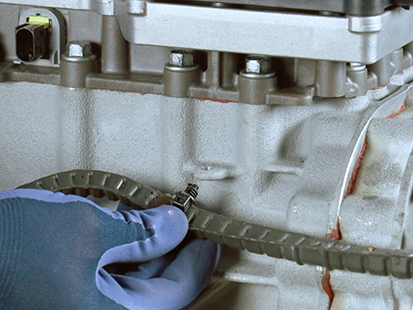

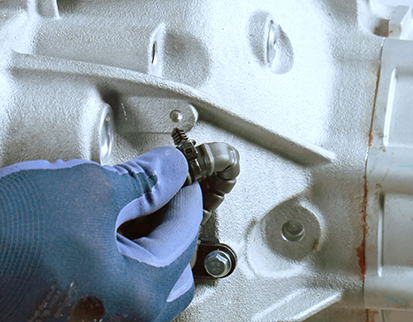

  2. Remove the 2 harness press-in retainers from the Main Housing and bracket on Rear Housing.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0044.png_Graphics/_Raster/XD Photos_1121/TRSM0960_0042.png

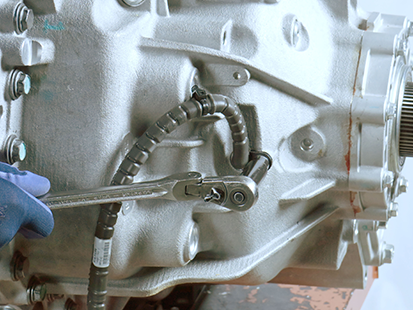

  3. Remove the Output Speed Sensor 10 mm cap screw.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0033.png

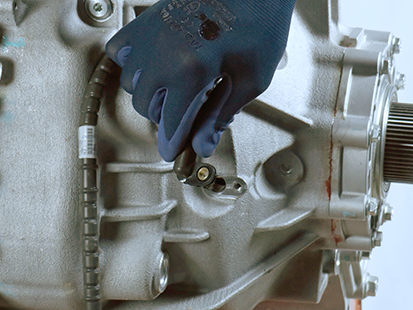

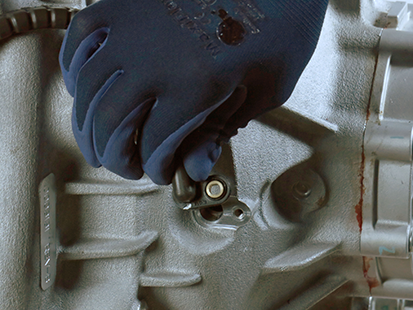

  4. Remove the Output Speed Sensor from the Rear Housing.

    Note: The sensor may need to be twisted and pulled from the bore.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0035.png_Graphics/_Raster/XD Photos_1121/TRSM0960_0037.png

Install the Output Speed Sensor

  1. Clean the sensor bore.

    Notice
    Do not use abrasive scrapers or powered tools to clean sealing surface.

  2. Apply a light coat of transmission oil to the sensor O-ring.

  3. Install the Output Speed Sensor into the bore.

    Note: The Sensor may need to be twisted and pushed into the bore.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0035.png

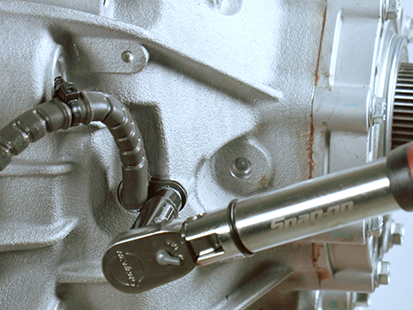

  4. Install the Output Speed Sensor 10 mm cap screw and torque to 8.8-10.4 Nm (6-8 lb-ft).

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0041.png

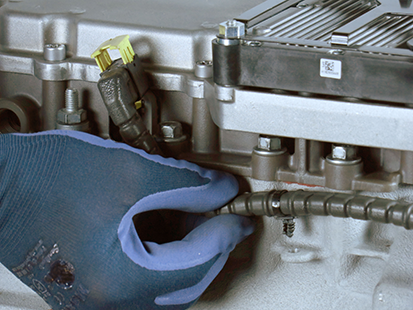

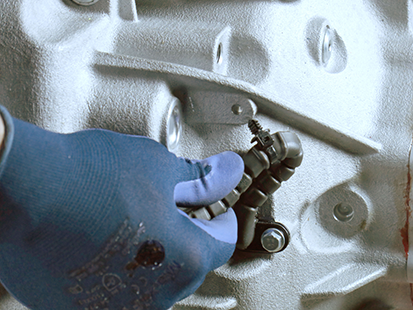

  5. Press the 2 harness press-in retainers into the Main Housing and the bracket on the rear housing.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0030.png_Graphics/_Raster/XD Photos_1121/TRSM0960_0031.png

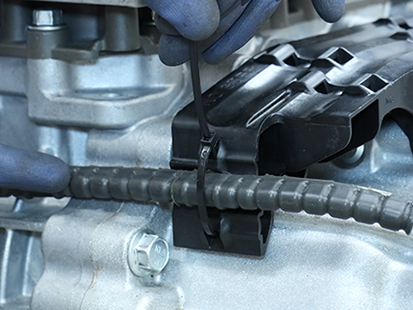

  6. Secure the Output Speed Sensor Harness to the Harness Bracket with a tie strap.

    Caution
    Failure to tie strap the Output Speed Sensor Harness to the Harness Bracket may result in harness damage.
    _Graphics/_Raster/TRSM0950_OSS_Installation6.png

Connect the Output Speed Sensor

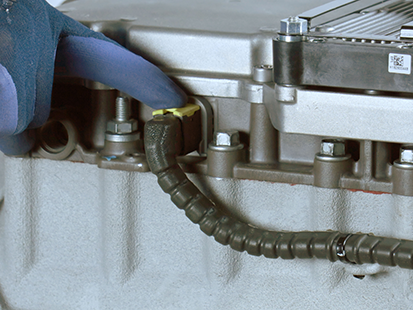

  1. Connect the Output Speed Sensor Harness to the Connector on the Mechatronic Transmission Module (MTM) and close the latch.

    _Graphics/_Raster/XD Photos_1121/TRSM0960_0047.png_Graphics/_Raster/XD Photos_1121/TRSM0960_0049.png
