Endurant XD
TRSM0960 EN-US
|
September 2025 - E

Output Yoke

Special Instructions

None

Special Tools

None

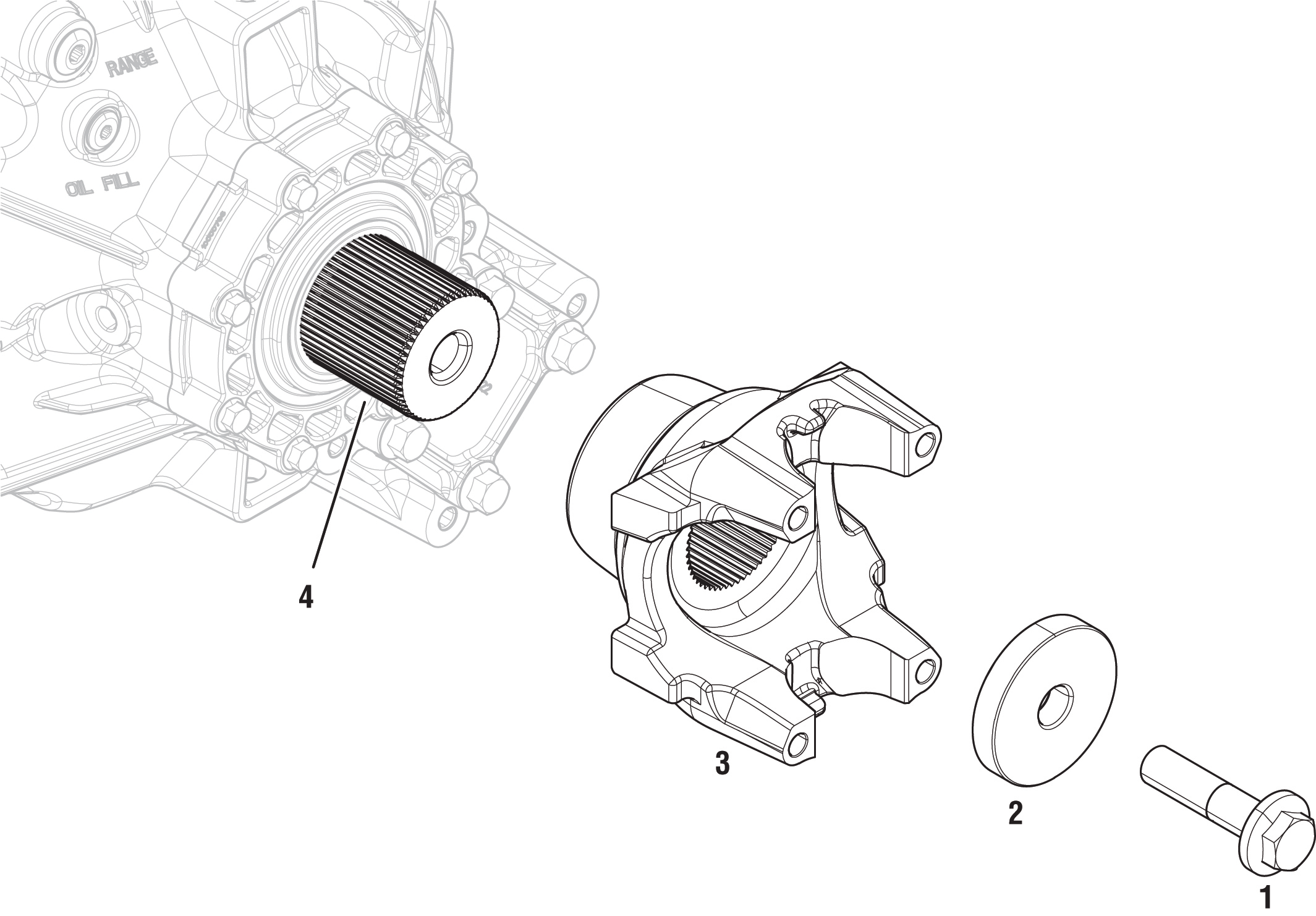

Component Identification

_Graphics/_LineArt/TRSM0960_Yoke_ID.png

1. Retainer Bolt - 27 mm

2. Retainer Plate

3. Output Yoke

4. Output Shaft

Remove the Output Yoke

Note: Output Yoke is removable with transmission in chassis.

  1. Remove the driveline. Refer to OEM guidelines for driveline removal.

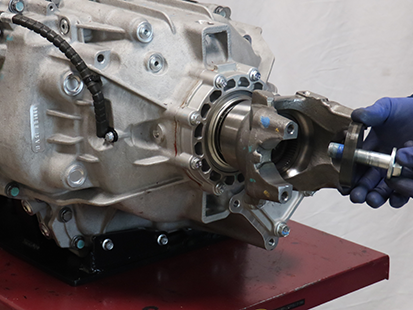

  2. Remove the 27 mm Retainer Bolt and Retainer Plate.

    Warning
    A new Retainer Bolt is required during Output Yoke installation. Failure to replace with a new Retainer Bolt may cause the bolt to loosen during operation and may result in major vehicle component damage, severe injury or death.
    _Graphics/_Raster/TRSM0960_OutputYoke_3.png

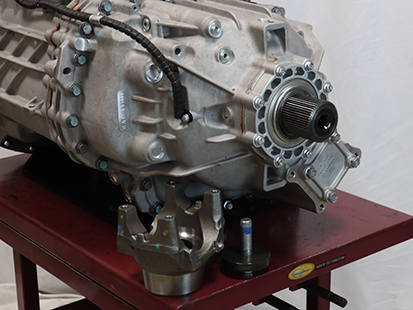

  3. Remove the Output Yoke.

    Note: An output yoke puller may be required due to spline interference fit.

    _Graphics/_Raster/TRSM0960_OutputYoke_1.png

Install the Output Yoke

  1. Clean the mating surfaces and splines on the output shaft and Output Yoke.

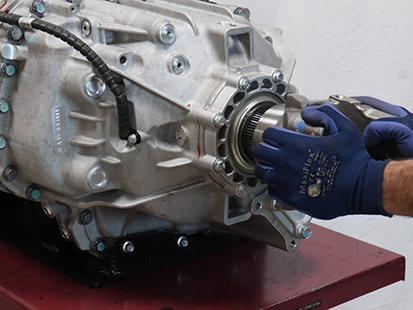

  2. Slide the Output Yoke over the output shaft.

    Note: The Output Yoke may require to be driven on due to spline interference fit.

    _Graphics/_Raster/TRSM0960_OutputYoke_0457.png

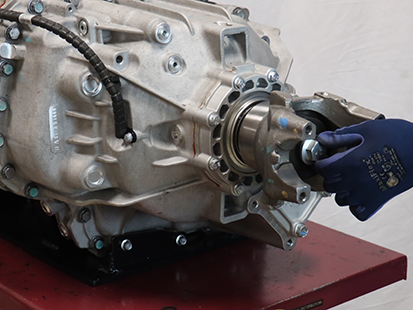

  3. Install the Retainer Plate and a new 27 mm Retainer Bolt and torque to 617-690 Nm (455-508 lb-ft).

    Warning
    A new Retainer Bolt is required during Output Yoke installation. Failure to replace with a new Retainer Bolt may cause the bolt to loosen during operation and may result in major vehicle component damage, severe injury or death.
    _Graphics/_Raster/TRSM0960_OutputYoke_0459.png
