Fuller Advantage
TRSM0980 EN-US
|
October 2022 - B

Gear Position Sensor

Special Instructions

None

Special Tools

  • Basic hand tools

Component Identification

_Graphics/LineArt/trsm0930p7a.png

1. Cap Screw

2. 3-Way Gear Position Sensor

3. Gasket

Gear Position Sensor Removal

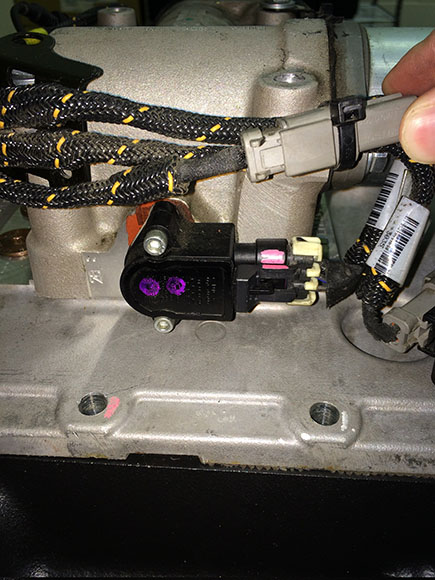

  1. Disconnect the Transmission Harness from the Gear Position Sensor.

    _Graphics/Web/TRTS0980_gear sensor 1.jpg

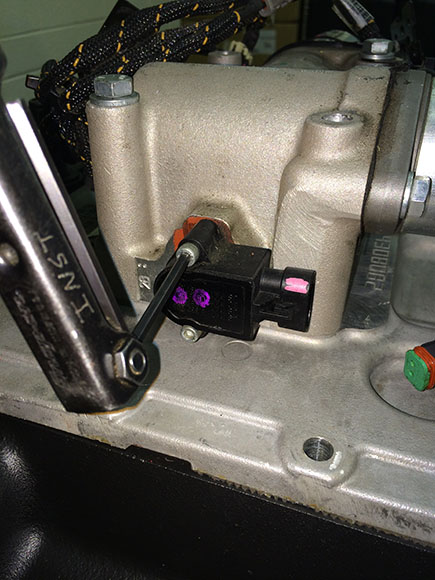

  2. Using a 5/32” hex key wrench, remove the two (2) sensor hex key mounting screws.

    Caution
    Carefully allow sensor to rotate to a relaxed position, or sensor can snap when the hex key mounting screws are removed.
    _Graphics/Web/TRTS0980_gear sensor 2.jpg

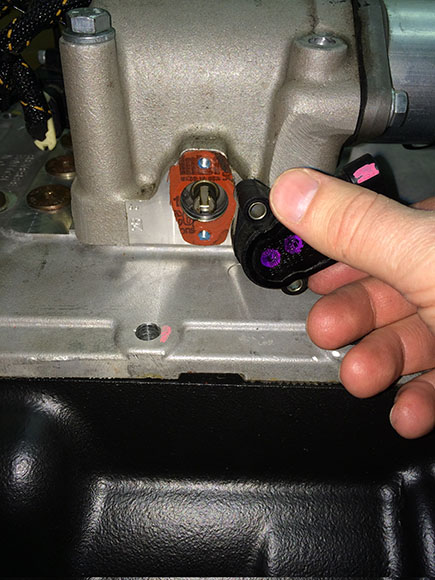

  3. Remove the Gear Position Sensor and gasket from the housing.

    _Graphics/Web/TRTS0980_gear sensor 3.jpg

Gear Position Sensor Installation

  1. Align the sensor tabs with the slots in the X-Y Shifter Rail. Then, insert Gear Position Sensor, with gasket, into its mounting location.

    Note: Install sensor so the connector opening faces the front of the Transmission.

    _Graphics/Web/TRTS0980_gear sensor 3.jpg

  2. Using a 5/32” hex key wrench, install the hex key mounting screws and tighten to 21–27 lb-in (2.3–3.0 N•m).

    Caution
    Carefully hold sensor in position while installing hex key mounting screws, or sensor can snap.
    _Graphics/Web/TRTS0980_gear sensor 2.jpg

  3. Reconnect the Transmission Harness to the Gear Position Sensor.

    _Graphics/Web/TRTS0980_gear sensor 1.jpg
