Release Yoke and Cross-Shaft(s)
Special Instructions
None
Special Tools
- Basic hand tools
Component Identification
 |
1. Plug 2. O-ring 3. Upper Cross-shaft 4. Bushing 5. Seal 6. Lock Washer 7. Mounting Screw 8. Release Yoke 9. Lower Cross-shaft |
Release Yoke and Cross-Shaft(s) Removal
Note: The Transmission and ECA must be removed prior to removing the Release Yoke and Cross-Shaft(s).
Remove the upper and lower Cross-Shaft mounting cap screws and lock washers from the Release Yoke.
Remove the Cross-Shaft Plug with O-ring.

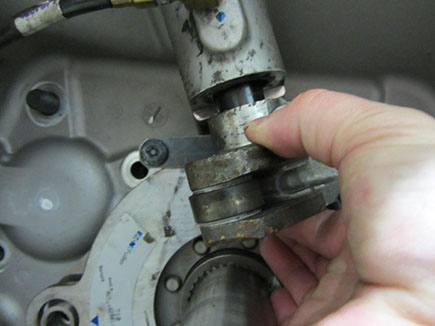

Push the upper Cross-Shaft up out of the Release Yoke and remove the Yoke.
Remove the lower Cross-Shaft and Release Yoke.
Remove the upper Cross-Shaft Seal assembly.
If necessary, remove the 2 upper Cross-Shaft Bushings.
Release Yoke and Cross-Shaft(s) Installation
If previously removed, install the 2 upper Cross-Shaft Bushings.
Note: Make sure to apply grease to the bushings.
If previously removed, install the upper Cross-Shaft Grease Seal.
Install the upper Cross-Shaft into the bore.

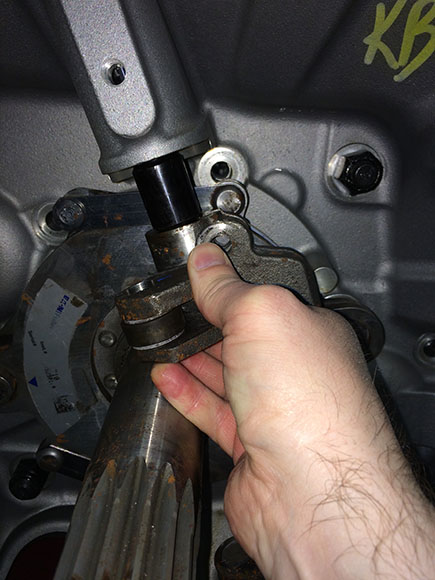

Slide yoke onto upper Cross-Shaft assembly and install 1 cap screw and lock washer by hand.

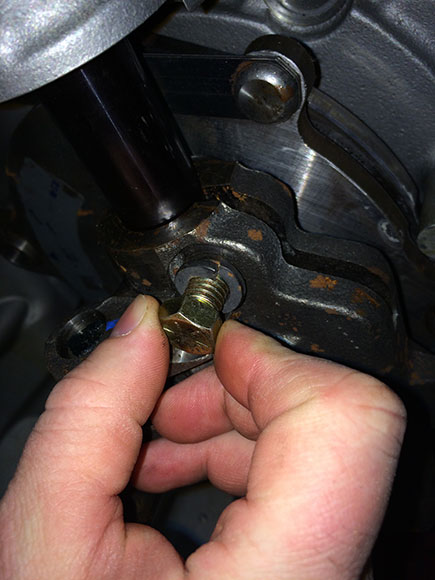

Install lower Cross-Shaft assembly and install 1 cap screw and lock washer by hand.

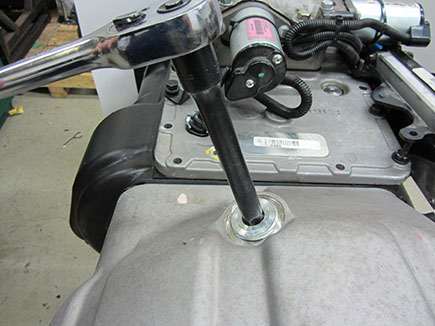

If previously removed, install the O-ring onto the Cross-Shaft Plug and then install the Cross-Shaft Plug into the Transmission Housing and torque to 34–48 lb-ft (46–65 N•m).
Tighten the 2 Yoke cap screws to 35–45 lb-ft (47–61 N•m).
Grease upper Cross-Shaft assembly, refer to the Clutch Service Manual (CLSM0200) for proper purging procedure.
