Endurant HD
TRTS0950 EN-US
|
October 2024 - B

Configure Mechatronic Transmission Module (MTM) Type

1. Key off.

2. Set vehicle parking brake and chock wheels.

3. Record MTM Part Number and MTM Serial Number installed on transmission.

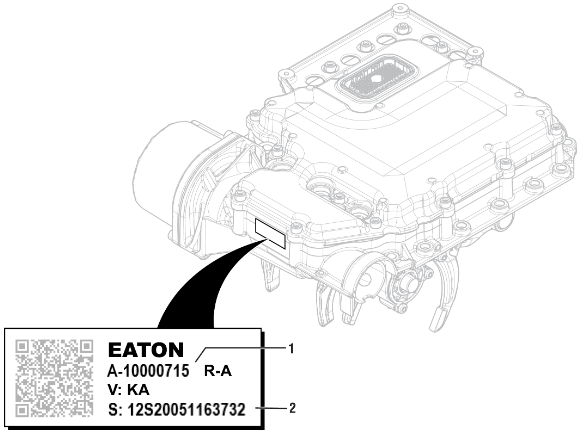

_Graphics/LineArt/MTM_SerialTagLocation.png
  • MTM Part Number
  • MTM Serial Number
MTM Part NumberMTM Serial Number

4. Key on with engine off.

5. Connect ServiceRanger.

6. Go To “Programming”.

7. Record TCM Software Part Number listed under “Software Information”.

TCM Software

9. Compare MTM Part Number recorded in Step 3 with MTM Part Number in table and record MTM Type.

MTM Part NumberMTM Type
A-10004231PS-496
A-10004356
A-10004383
A-10000715PS-393
A-10002594
A-10004202

10. Key on with engine off.

11. Connect ServiceRanger.

12. Go To “Configuration”.

13. Select “Advanced”.

14. From “MTM Type” New Value drop down select MTM Type recorded in Step 9.

15. Select “Apply” and follow on-screen prompts.

16. Key on with engine off.

17. Connect ServiceRanger.

18. Go To “Configuration”.

19. Select “Identification”.

20. In “Current MTM Serial Number” New Value field enter MTM Serial Number recorded in Step 3.

21. Select “Apply” and follow on-screen prompts.
