Manually Actuate Rail E Procedure

Special Instructions

None

Special Tools

  • Mechanical Diagnostic Kit (RR2011TR)

Component Identification

_Graphics/LineArt/TRTS0960_ManuallyActuateRailA_ID.png

1. MTM Cap Screws, Long (x4) - 13 mm

2. MTM Cap Screws, Special (x2) - 15 mm

3. MTM Cap Screws (x14) - 13 mm

4. Mechatronic Transmission Module (MTM)

5. Main Housing

6. Output Speed Sensor Connector

Procedure – Manually Actuate Rail E

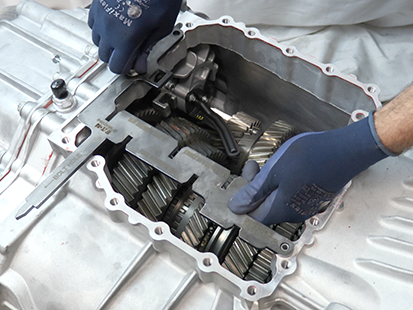

  1. Install MTM Alignment Tool (RR1086TR-1) on Main Housing with one MTM cap screw and hand tighten.

    _Graphics/Raster/TRTS0960_Appendix_RailE_1.png

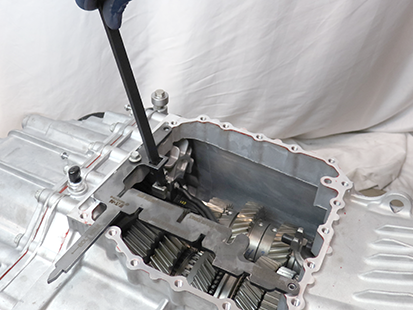

  2. Shift Rail E to neutral position (if necessary).

    _Graphics/Raster/TRTS0960_Appendix_RailE_2.png
  3. Return to troubleshooting procedure and use tool lever to shift Rail E as required. Remove MTM Alignment Tool (RR1086TR-1) when complete.
