Endurant HD
TRTS0950 EN-US
|
September 2024 - B

Manually Actuate Rail B Procedure

Special Instructions

None

Special Tools

  • Mechanical Diagnostic Kit (RR2011TR)

Component Identification

_Graphics/Raster/TRSM0950_MTM_ID.png

1. MTM Cap Screws, Long (x4) - 13 mm

2. MTM Cap Screws, Special (x2) - 15 mm

3. MTM Cap Screws (x14) - 13 mm

4. Mechatronic Transmission Module (MTM)

5. Main Housing

6. Output Speed Sensor

Procedure – Manually Actuate Rail B

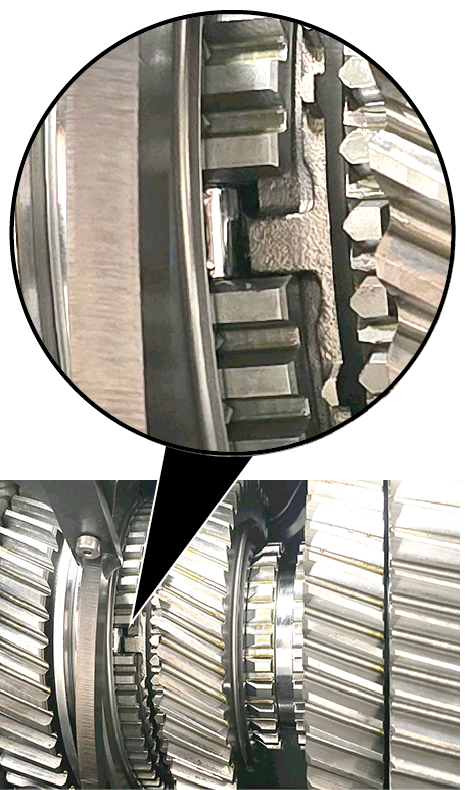

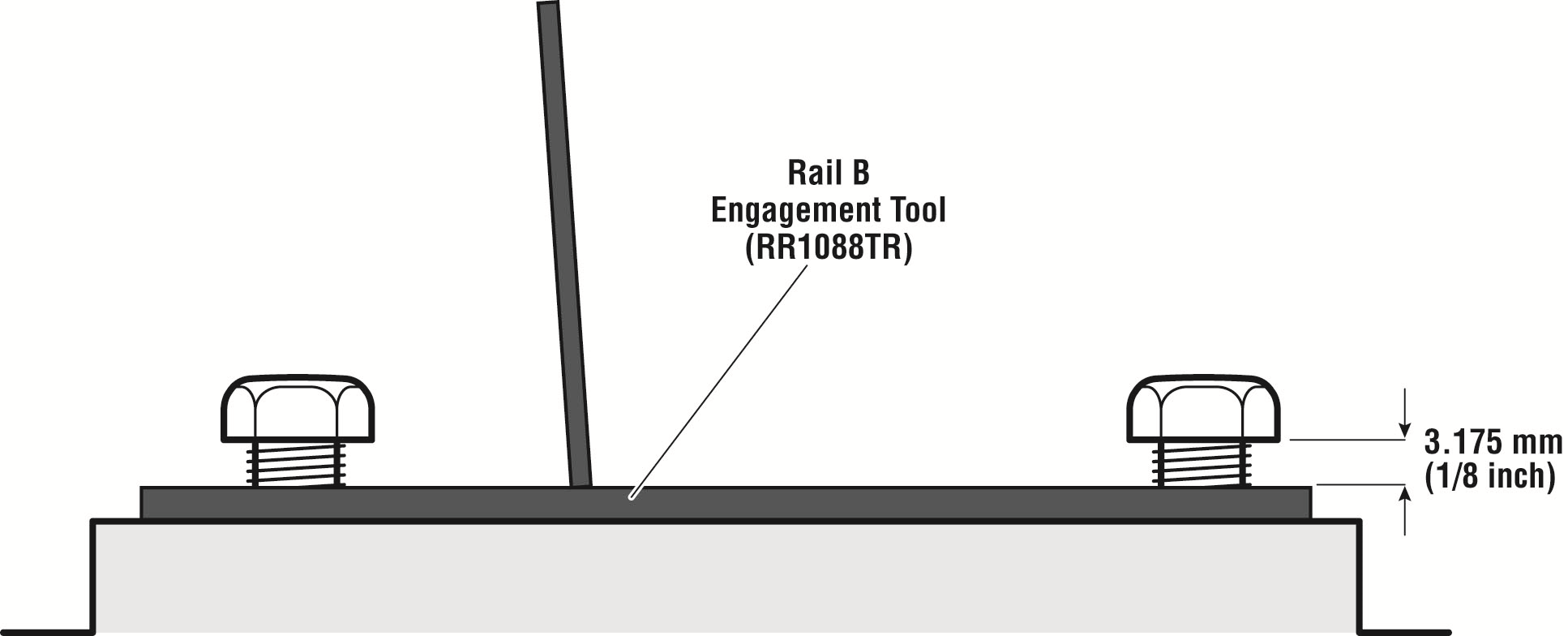

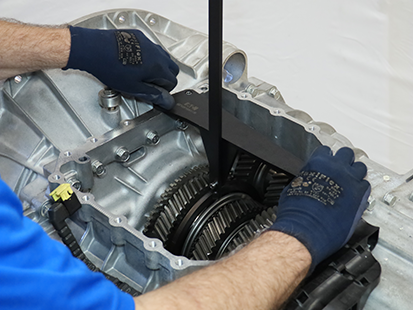

  1. Install the Rail B Engagement Tool (RR1088TR) to the Main Housing and hand tighten with 2 MTM cap screws.

    _Graphics/Raster/IMG_0354.png

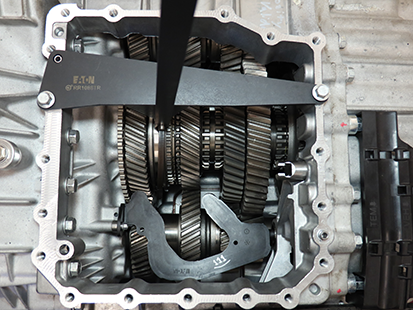

  2. Shift the Rail B Synchronizer to neutral.

    _Graphics/Raster/IMG_0362.png_Graphics/Raster/IMG_0369.png

  3. Return to troubleshooting procedure
