The Endurant XD Series transmissions are equipped with a Fluid Pressure Sensor (FPS) to monitor oil pressure. The transmission oil pump provides the supply oil for the lubrication system. The FPS provides a pressure input to the Transmission Control Module (TCM). The TCM monitors oil pressure to ensure the transmission is being properly cooled and lubricated. If the oil pressure is out of range, the TCM will adjust transmission operation to perform properly and prevent damage. The FPS is mounted externally to the side of the transmission and connects to the TCM at the 20-Way TCM Vehicle Harness Connector.
The TCM monitors the FPS oil pressure signal. If oil pressure is outside of normal operating range or a system failure is detected, the fault is set Active.
FMI 1 – Data Valid But Below Normal (Most Severe): Transmission oil pressure critically low for 5 seconds.
FMI 3 – Voltage Above Normal or Shorted High: FPS circuit shorted to power for 5 seconds.
FMI 4 – Voltage Below Normal or Shorted Low: FPS circuit shorted to ground for 5 seconds.
FMI 5 – Current Below Normal or Open Circuit: FPS circuit open or shorted to ground for 5 seconds.
FMI 6 – Current Above Normal or Grounded Circuit: FPS reference voltage not between 4.75V to 5.25V for 5 seconds.
FMI 18 – Data Valid But Below Normal Operating Range (Moderately Severe): Transmission oil pressure moderately low for 5 seconds.
FMI 20 – Data Drifted High: Transmission oil pressure too high in error when Countershaft is stationary.
FMI 21 – Data Drifted Low: Transmission oil pressure too low in error.
FMI 1:
FMI 3, 4, 5, 6, 18, 20, 21:
FMI 1: Transmission oil pressure in range.
FMI 3: FPS circuit not shorted to power for 10 seconds.
FMI 4: FPS circuit not shorted to ground for 10 seconds.
FMI 5: FPS circuit not open or shorted to ground for 10 seconds.
FMI 6: FPS reference voltage in range for 10 seconds.
FMI 18: Transmission oil pressure in range for 10 seconds.
FMI 20, 21: Key cycle and fault condition no longer exists.
FMI 1, 18:
FMI 3, 4, 5, 6:
FMI 20:
FMI 21:
1. Fluid Pressure Sensor (FPS) 2. Transmission Control Module (TCM) |
1. Transmission Control Module (TCM) 2. 20-Way TCM Vehicle Harness Connector 3. 3-Way Fluid Pressure Sensor Connector 4. Fluid Pressure Sensor (FPS) |
Set vehicle parking brake and chock wheels.
Record transmission fault codes, FMIs, occurrences, and timestamps from Service Activity Report created during the Diagnostic Procedure.
If Fault Code 210 FMI 1, 18 is Active or Inactive, Go to Step B
If Fault Code 210 FMI 3, 4, 5, 6, 20, 21 is Active or Inactive, Go to Step D
Key off.
Perform Oil Level Inspection Procedure.
Note: Reference Endurant XD Service Manual TRSM0960, Oil Level Inspection Procedure.
If FMI 1, 18 and transmission oil level is in range, Go to Step F
If FMI 21 and transmission oil level is in range, replace the Fluid Pressure Sensor (FPS). Go to Step V
If FMI 1, 18, 21 and transmission oil level is out of range, Go to Step C
Key off.
Perform Oil Drain Removal.
Note: Reference Endurant XD Service Manual TRSM0960, Oil Drain Removal Service Procedure.
Record residual oil volume in table.
Remove PTO cover and inspect for damage.
Contact Eaton Cummins Automated Transmission Technologies at +1 800-826-4357 for further diagnostic instructions. Go to Step V
Residual Oil Volume |
---|
Key off.
Disconnect the 3-Way FPS Harness Connector.
Inspect the 3-Way FPS Harness Connector, verify the connector is free from contamination and corrosion; the terminals are not bent, spread or loose; and there is no damage to the connector body.
Connect the 3-Way Eaton Diagnostic Adapter (EDA) to the 3-Way FPS Harness Connector.

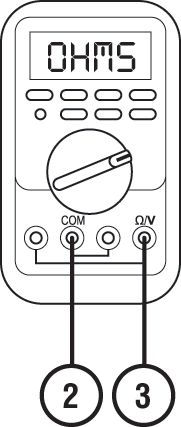

Measure resistance between 3-Way EDA Pin 2 (Ground) and Pin 3 (Signal). Record reading in table.
Key on.

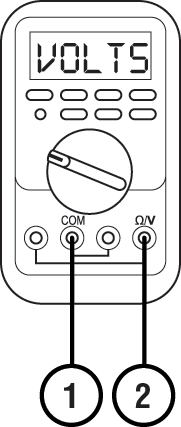

Measure voltage at the 3-Way EDA Pin 1 (5V) and Pin 2 (Ground). Record reading in table.
Compare reading(s) in table.
If readings are in range, Go to Step E
If readings are out of range, refer to OEM guidelines for repair or replacement of the FPS signal, power and/or ground circuit(s) between the 3-Way FPS Connector and 20-Way TCM Vehicle Harness Connector. Go to Step V
Ignition State | Pins | Range | Reading(s) |
---|---|---|---|
Key off | 2 to 3 | 3k-9k Ohms | |
Key on | 1 to 2 | 4.75–5.25 V |
Key off.
Disconnect 20-Way TCM Vehicle Harness Connector.
Inspect 20-Way TCM Vehicle Harness Connector, verify connector is free from contamination and corrosion; terminals are not bent, spread or loose; and there is no damage to connector body.

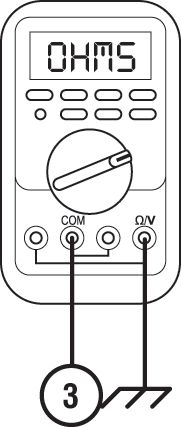

Measure resistance between 3-Way EDA Pin 3 (signal) and Ground. Record reading in table.
Compare reading(s) in table.
If FMI 3, 4, 5, 6, 20 and readings are in range, replace the Fluid Pressure Sensor. Go to Step V
If FMI 21 and readings are in range, Go to Step B
If FMI 3, 4, 5, 6, 20, 21 and readings are out of range, refer to OEM guidelines for repair or replacement of the FPS signal circuit between the 3-Way Fluid Pressure Sensor Connector and 20-Way TCM Vehicle Connector. Go to Step V
Pins | Range | Reading(s) |
---|---|---|
3 to ground | Open Circuit (OL) |
Key off.
Perform Fluid Pressure Sensor (FPS) Removal.
Install Oil Pressure Adapter (M14x1.5 O-ring Straight Thread) and torque to 19-23 Nm (14-17 lb-ft).
Connect Digital Pressure Gauge (or Analog 0-100 psi maximum) to Oil Pressure Adapter.
Key on with engine running.
Idle engine (650-750 RPM) for 2 minutes to stabilize transmission oil pressure.
With engine idling at 650-750 RPM, monitor pressure gauge and record reading in table.
Increase and hold engine at 950-1050 RPM, monitor pressure gauge and record reading in table.
Increase and hold engine at 1150-1250 RPM, monitor pressure gauge and record reading in table.
Increase and hold engine at 1350-1450 RPM, monitor pressure gauge and record reading in table.
Key off.
Compare reading(s) in table.
If readings are in range, replace the Fluid Pressure Sensor. Go to Step V
If readings are out of range, Go to Step C
Engine RPM | Range | Reading(s) |
---|---|---|
650-750 | 5-15 psi | |
950-1050 | 10-20 psi | |
1150-1250 | 15-25 psi | |
1350-1450 | 20-35 psi |
Key off.
Reconnect all connectors and verify all components are properly installed.
Key on with engine off.
Connect ServiceRanger.
Go To “Fault Codes”.
Select “Clear All Faults”.
Operate vehicle and attempt to reset the fault code or duplicate the previous complaint.
Check for fault codes using ServiceRanger.
If no fault codes set and vehicle operates properly, test complete.
If Fault Code 210 sets Active, Go to Step A
If a fault code other than 210 sets Active, troubleshoot per Fault Code Isolation Procedure Index.
