The Endurant XD Pro Transmission incorporates enhanced controls to support various vocational features. Features include 2-Speed Axle, Auxiliary Transmission (Aux Trans), Force Neutral, Hold Neutral, Neutral Output, Power Take-Off (PTO): PTO 1 and PTO 2, Split Shaft PTO (SSPTO), Reverse Output, Rock Free Mode and Secondary Configuration Mode.
The Transmission Control Module (TCM) is equipped to receive 4 switch inputs and control 3 relay outputs that can be configured in an Input/Output (I/O) Calibration Package to support these vocational features. All external circuit inputs and outputs connect to the TCM in the 20-Way TCM Body Harness Connector.
Listed below are the Input / Output Calibration Packages and recommended wiring diagrams to assist the OEM or body builder with vocational feature integration. Once circuit and component installation is complete, ServiceRanger is required to configure the I/O Calibration Package in the TCM.
Note: Additional information can also be found in PTO installation Guide TRIG2620 and the Endurant XD Installation guide TRIG0960.

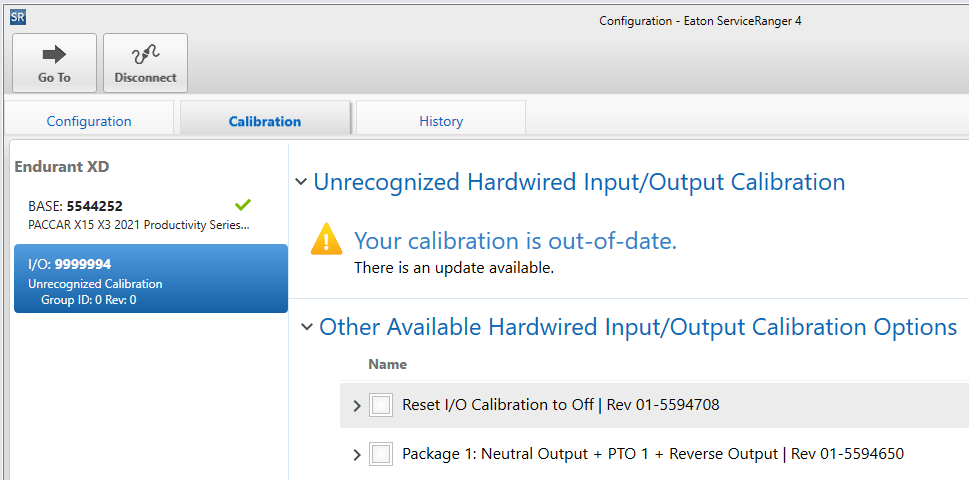

This package is used to reset or turn off an I/O Calibration Package configured in the TCM. Use this procedure when:
I/O Package | I/O Calibration Package Description | Wiring Diagram Link |
---|---|---|
1 | Neutral Output + PTO 1 + Reverse Output (Factory Setting) | Input / Output Calibration Package 1 |
2 | Rock Free Mode + Secondary Shift Mode | Input / Output Calibration Package 2 |
3 | 2-Speed Aux Trans + Rock Free Mode | Input / Output Calibration Package 3 |
4 | PTO 1 | Input / Output Calibration Package 4 |
5 | PTO 1 + PTO 2 | Input / Output Calibration Package 5 |
6 | PTO 1 + Secondary Shift Mode | Input / Output Calibration Package 6 |
7 | PTO 1 + Rock Free Mode + Secondary Shift Mode | Input / Output Calibration Package 7 |
8 | PTO 1 + Reverse Output + Rock Free Mode | Input / Output Calibration Package 8 |
9 | Rock Free Mode | Input / Output Calibration Package 9 |
10 | Reverse Output | Input / Output Calibration Package 10 |
11 | PTO 1 + Reverse Output | Input / Output Calibration Package 11 |
12 | 2-Speed Aux Trans | Input / Output Calibration Package 12 |
13 | 2-Speed Aux Trans + Secondary Shift Mode | Input / Output Calibration Package 13 |
14 | Force Neutral | Input / Output Calibration Package 14 and 15 |
15 | Hold Neutral | Input / Output Calibration Package 14 and 15 |
16 | 2-Speed Axle | Input / Output Calibration Package 16 |
17 | 2-Speed Axle + Rock Free Mode | Input / Output Calibration Package 17 |
18 | 2-Speed Axle + PTO 1 | Input / Output Calibration Package 18 |
19 | 2-Speed Axle + Secondary Shift Mode | Input / Output Calibration Package 19 |
20 | Split Shaft PTO | Input / Output Calibration Package 20 |
21 | PTO 1 + Split Shaft PTO | Input / Output Calibration Package 21 |
22 | Force Neutral + PTO 1 | Input / Output Calibration Package 22 and 25 |
23 | PTO 1 + PTO 2 + Force Neutral | Input / Output Calibration Package 23 and 26 |
24 | Force Neutral + Neutral Output + Reverse Output | Input / Output Calibration Package 24 and 27 |
25 | Hold Neutral + PTO 1 | Input / Output Calibration Package 22 and 25 |
26 | Hold Neutral + PTO 1 + PTO 2 | Input / Output Calibration Package 23 and 26 |
27 | Hold Neutral + Neutral Output + Reverse Output | Input / Output Calibration Package 24 and 27 |
29 | PTO 1 + Rock Free Mode | Input / Output Calibration Package 29 |
30 | Reverse Output + Secondary Shift Mode | Input / Output Calibration Package 30 |
31 | Reverse Output + Rock Free Mode | Input / Output Calibration Package 31 |
32 | 2-Speed Aux Trans + Reverse Output | Input / Output Calibration Package 32 |
33 | 2-Speed Axle + Reverse Output | Input / Output Calibration Package 33 |
34 | PTO 1 + PTO 2 + Reverse Output | Input / Output Calibration Package 34 |
35 | Neutral Output + Reverse Output | Input / Output Calibration Package 35 |
36 | Neutral Output | Input / Output Calibration Package 36 |
37 | Reset I/O Calibration to Off Note: This package is used to reset or turn off an I/O Calibration Package configured in the TCM. | N/A |
38 | 3-Speed Aux Trans - Underdrive, Direct, Overdrive (UD, D, OD) | Input / Output Calibration Package 38 |
39 | 3-Speed Aux Trans (UD, D, OD) + Rock Free Mode | Input / Output Calibration Package 39 |
40 | 3-Speed Aux Trans (UD, D, OD) + Secondary Shift Mode | Input / Output Calibration Package 40 |
41 | 3-Speed Aux Trans (UD, D, OD) + Rock Free Mode + Secondary Shift Mode | Input / Output Calibration Package 41 |
42 | 3-Speed Aux Trans - Underdrive, Neutral, Direct, Overdrive (UD, N, D, OD) | Input / Output Calibration Package 42 |
43 | 3-Speed Aux Trans (UD, N, D, OD) + Rock Free Mode | Input / Output Calibration Package 43 |
44 | 4-Speed Aux Trans - Low, Underdrive, Direct, Overdrive (L, UD, D, OD) | Input / Output Calibration Package 44 |
45 | 4-Speed Aux Trans (L, UD, D, OD) + Rock Free Mode | Input / Output Calibration Package 45 |
46 | 4-Speed Aux Trans - Low, Underdrive, Neutral, Direct, Overdrive (L, N, UD, D, OD) | Input / Output Calibration Package 46 |
47 | Railroad Mode | Input / Output Calibration Package 47 |
48 | Railroad Mode + PTO 1 | Input / Output Calibration Package 48 |
